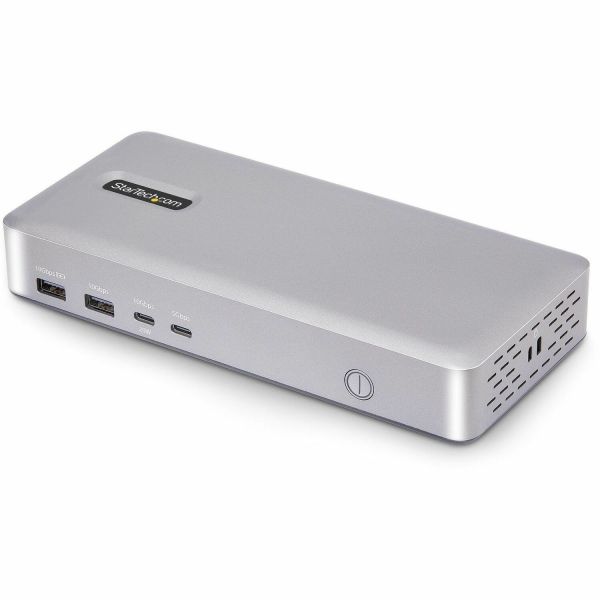

StarTech.com 155UE-USB4-DOCK

Marketing Information

This USB4 (USB-C 4Gbps) docking station uses a single USB4 or Thunderbolt port on a host computer to add high-performance connectivity while charging the laptop.

Flexible High-Performance Video

The dock is equipped with 2x HDMI 2.1 video outputs for connecting dual monitors to the host computer. The dock supports can support dual-monitors with support for resolutions up dual 4K 60Hz at 4:4:4 (RGB) or dual 4K 120Hz at 4:2:2. A single display workstation is also supported at resolutions up to 8K 30Hz 4:4:4 (RGB) or 8K 60Hz at 4:2:2.

Port Connectivity

The docking station utilizes the high 40Gbps throughput available from a Thunderbolt 4/3, or USB4 port to provide a wide range of port connectivity to suit ...a variety of applications.

The dock features:

• 2x HDMI ports to connect displays.
• 6x USB Hub (2x 10Gbps USB Type-A, 2x USB Type-A 5Gbps, 1x USB Type-C 10Gbps, 1x USB-C 5Gbps) to connect USB peripheral devices.
• 1x 2.5 Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN)

100W USB Power Delivery Certified

Includes a 180W power adapter and supports 100W USB power delivery. This enables the dock to charge the laptop, with enough additional power for all downstream ports. The 6-Port USB hub includes a 20W downstream USB-C Power Delivery port and a 7.5W BC 1.2 Downstream Charging Port (DCP) for charging tablets, smartphones or other battery-powered USB devices.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools App

Developed to improve performance and security, Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software includes:

• Advanced Windows Layout Utility: To setup and save custom windows layouts.
• Mac Address Pass-Through Utility: To improve network security.
• USB Event Monitoring Utility: To track and log connected USB devices
• Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: 155UE-USB4-DOCK
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 155UE-USB4-DOCK
Packaged Quantity: 1
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Charging Capability: Yes
Device Supported:

• Tablet
• Monitor
• Smartphone
• Notebook

Features: Power Delivery Pass-through
Management Features:

• PXE Boot
• Wake-on-LAN
• MAC Address Pass-through

Number of Displays Supported: 2
Screen Mode Supported:

• 4K
• 4K @ 120Hz
• 4K @ 60Hz
• 8K
• 8K @ 30Hz

Supported Resolutions:

• 3840 x 2160
• 7680 x 4320

Maximum Data Transfer Rate: 5 GB/s
Security Slot Type: Kensington Security Slot
Network & Communication
Ethernet Technology: 2.5 Gigabit Ethernet
Interfaces/Ports
Host Interface: USB4
Total Number of USB Ports: 6
Number of USB 3.2 Gen 1 Type-A Ports: 1
Number of USB 3.2 Gen 2 Type-A Ports: 2
Number of USB Type-A Ports: 4
Number of USB Type-C Ports: 2
USB Type-A: Yes
USB Type-C: Yes
USB Type-C Detail: 1 x USB Type-C 10Gbps, 1x USB-C 5Gbps
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
Number of HDMI Outputs: 2
HDMI: Yes
HDMI Version: 2.1
Thunderbolt: Yes
USB Power Delivery: 100W
Software
Operating System Supported:

• Windows 10
• Windows 7
• Windows 8
• ChromeOS
• Windows 11 (64-bit)

Power Description
Maximum Power Supply Wattage: 165 W
Power Source Type: Power Adapter
Physical Characteristics
Color Family: Grey
Product Color: Space Gray
Form Factor: Desktop
Height: 33 mm
Width: 210.8 mm
Weight (Approximate): 138.9 g
Miscellaneous
Package Contents:

• 155UE-USB4-DOCK
• 1 x 3 ft [1 m] USB4 Host Cable
• 1 x Universal Power Adapter (EU, UK)
• 1 x Quick-Start Guide

Kensington Security Slot: Yes
Compatibility:

Compatible Devices:

• Thunderbolt 4 Notebooks
• USB4 Notebooks

Warranty
Limited Warranty: 3 Year
