StarTech.com Wall Mount

Marketing Information

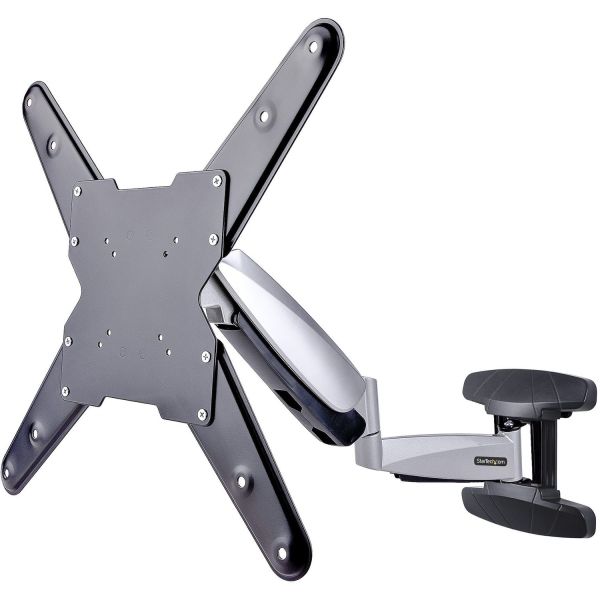

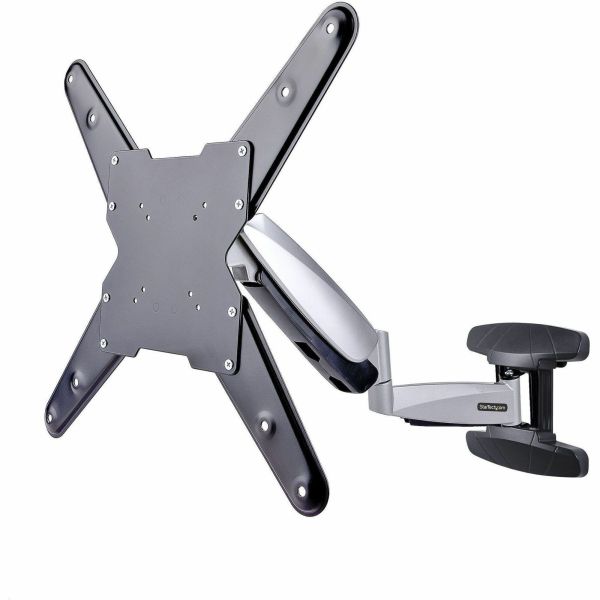

"The steel and aluminum construction of this VESA TV Wall Mount supports TVs from 23" to 55" and up to 66lb (30kg). The arm assembly provides smooth one-touch height adjustment thanks to its spring-loaded mechanism that acts as a counterbalance. The VESA plate supports mounting patterns of 75x75 to 400x400.

Versatile TV Mounting

Securely mount a flat or curved-screen TV or digital signage in a convenient location for viewing by visitors, clients, and employees. This TV wall mount is ideal for lobbies, boardrooms, and manufacturing facilities. The lateral range of 3.54 ft (1.08m) is ideal for corner mounting. The jointed arm folds on itself and creates a slim profile from the wall of just 2.2in (5.8cm) for limited space installations. The minimum TV weight is 17.6lb (8kg). M5/M6/M8 Screws of various lengths and an assortment of washers and spacers enhance TV mounting compatibility. Mount into wood-stud or concrete walls, using the included hardware.

Supported VESA mounting patterns: 75x75,100x100, 200x100, 200x200, 300x300, 400x200, and 400x400.

Full-Motion Adjustment

The VESA plate swivels +90 / -90 degrees, tilts +8 / -15 degrees, and rotates +3 / -3 degrees. Customize the viewing experience and comfort with these full-motion capabilities. The one-touch spring-assisted mechanism facilitates effortless height adjustments, with a range of up to 12.6in (32cm).

The arm assembly extends up to 23.4 in (59.5 cm) from the wall to accommodate different viewing positions.

Durable Construction

The robust steel and aluminum design safely and securely supports the TV. The arm assembly features built-in cable management and a wall mount cover for a an organized and visually appealing installation.

The height adjustable TV wall mount is backed for two years, including free lifetime 24/5 multi-lingual technical assistance."

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: FHATVWALLMOUNT
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Wall Mount
Packaged Quantity: 1
Product Type: Wall Mount
Product Information
Device Supported:

• TV
• Flat Panel Display
• Curved Screen Display

Number of Displays Supported: 1
Minimum Load Capacity: 8 kg
Maximum Load Capacity: 30 kg
Minimum Screen Size Supported: 58.4 cm
Maximum Screen Size Supported: 139.7 cm (55")
Features:

• +/- 90° Swivel
• +/- 3° Rotation
• Tool-less Adjustment
• Cable Management
• Full Motion
• Durable
• Articulating
• 180° Swivel
• Adjustable
• 8°/-15° Tilt

Mount Profile: Low Profile
Height Adjustable: Yes
Physical Characteristics
Product Color:

• Black
• Silver

Finishing: Silver
VESA Mount Compatible: Yes
Mounting Pattern:

• 75 x 75
• 100 x 100
• 200 x 100
• 200 x 200
• 400 x 200
• 400 x 400
• 300 x 300

Product Material:

• Steel
• Aluminium

Height: 45 cm
Width: 45 cm
Length: 59.4 cm
Weight (Approximate): 5.99 kg
Miscellaneous
Package Contents:

• 1 x Arm assembly
• 2 x Decorative covers
• 2 x VESA extension plates, LH
• 2 x VESA extension plates, RH
• 8 x VESA extension plate screws
• 1 x Wrench
• 1 x 4mm hex key
• 1 x 6mm hex key
• 1 x Bubble level
• 4 x M5x14mm screws
• 4 x M6x14mm screws
• 4 x M6x30mm screws
• 4 x M8x30mm screws
• 4 x M8x50mm screws
• 4 x Display washers, small
• 4 x Display washers, large
• 8 x Short spacers
• 8 x Tall spacers
• 5 x Wall mounting screws
• 5 x Concrete anchors
• 5 x Wall mounting washers
• 1 x Manual

Application/Usage:

• Wall
• Lobby
• Board Room

Warranty
Limited Warranty: 2 Year
