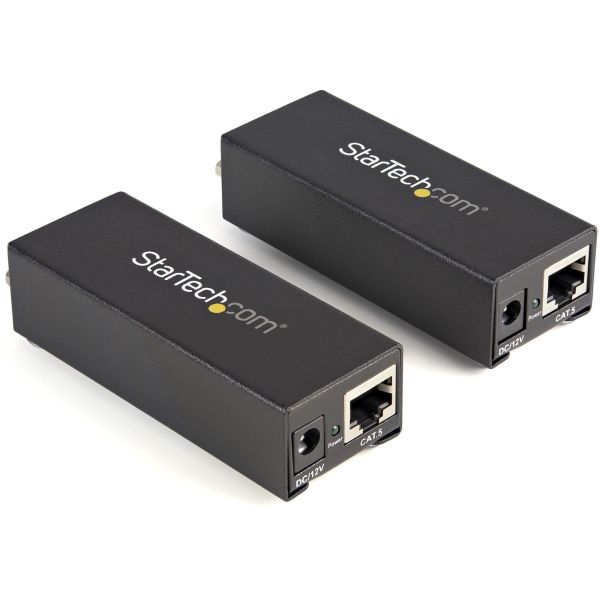

StarTech.com VGA to Cat 5 Monitor Extender Kit (250ft/80m) - VGA Cat5 Extender

Marketing Information

The ST121UTPEP VGA Video Extender over Cat5 - Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5or better UTP cable, terminated with RJ45 connectors).

Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application.

To ensure a tidy installation, the ST121UTPEP includ...es a mounting bracket for the receiver to help eliminate unnecessary cable tangles.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: ST121UTPEP
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: VGA to Cat 5 Monitor Extender Kit (250ft/80m) - VGA Cat5 Extender
Packaged Quantity: 1 Kit
Product Type: Video Extender Transmitter/Receiver
Technical Information
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 80 m
Video
Graphics Modes: WUXGA
Maximum Video Resolution: 1920 x 1200
Interfaces/Ports
Network (RJ-45): Yes
VGA In: Yes
VGA Out: Yes
Number of Network (RJ-45) Ports: 2
Number of VGA Inputs: 1
Number of VGA Outputs: 1
Media & Performance
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5e
Physical Characteristics
Color Family: Black
Product Color: Black
Transmitter Height: 25.40 mm
Transmitter Width: 137.16 mm
Transmitter Depth: 99.06 mm
Receiver Height: 25.40 mm
Receiver Width: 137.16 mm
Receiver Depth: 99.06 mm
Transmitter Weight (Approximate): 263 g
Receiver Weight (Approximate): 263 g
Miscellaneous
Package Contents:

• VGA to Cat 5 Monitor Extender Kit (250ft/80m) - VGA Cat5 Extender
• Power Adapter
• Mounting Bracket

Additional Information:

• Extends the connection distance of VGA displays by up to 250 feet (80 meters) offering flexibility in the placement of your equipment
• Included mounting bracket provides versatile mounting options such as a wall, desk or cabinet, for a clean and manageable installation
• The ST121UTPEP only requires one power adapter, installed at either the local or remote unit, wherever is most convenient for the application.

Certifications & Standards:

• CE
• FCC

TAA Compliant: Yes
