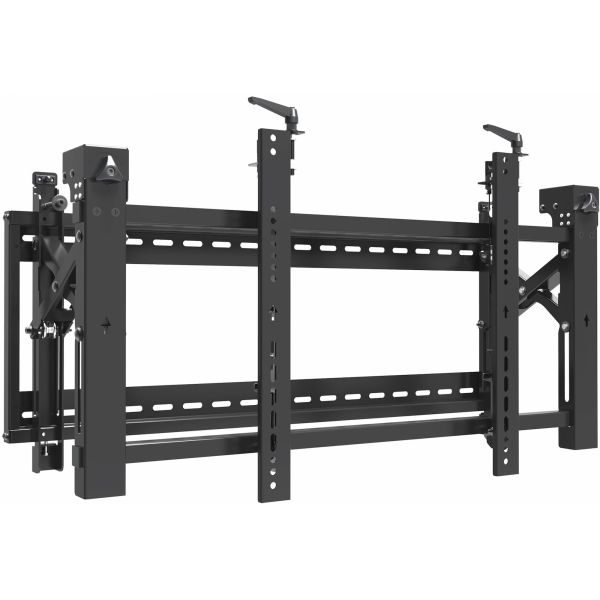

StarTech.com Video Wall Mount - Pop-Out Design - Micro-Adjustment

Marketing Information

This professional video-wall mount features an innovative pop-out design that enables fast and easy display alignment and adjustment, within a multi-display video wall.

A Versatile Video Wall Mounting System

Engineered with heavy-duty steel, the video-wall mount securely supports 45" to 70" displays, weighing up to 154 lb. (70 kg).

Using multiple VIDWALLMNT wall mounts, you can create an impressive video wall, enabling you to align your displays in unison. It's the ideal solution for public, business and commercial displays and includes a theft deterrence feature (padlock required).

Align Your Displays Seamlessly

With its unique pop-out design, the video wall mount helps you align your displ...ays with perfect precision. Once installed, you simply press gently on the front of the display and the mount extends out from the wall for rear-screen access. This pop-out feature makes it easy to adjust the position and angle of the display, or replace a display when required.

The video-wall mount features 6 points of micro-adjustment, with vertical, tilt and swivel adjustments, to provide exact display alignment and an optimum viewing angle. You can tilt your display +3 / -5 degrees, adjust the swivel angle +1.2 / - 1.2 degrees, and rotate the display +3 / - 3 degrees. The video-wall mount also features lateral shift brackets, making it easy to move the display to the left or right for ideal alignment in your video wall.

Easy Installation and Maintenance

This video-wall mounting system is designed for easy set-up and maintenance. The pop-out design also assists in installation and maintenance, plus a convenient kickstand allows you to tilt the display up to 12 degrees giving you extra room when adjusting cables or accessing ports.

The VIDWALLMNT is backed by a StarTech.com 5-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: VIDWALLMNT
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Video Wall Mount - Pop-Out Design - Micro-Adjustment
Packaged Quantity: 1 Each
Product Type: Mounting Arm
Product Information
Device Supported:

• Video Wall
• LCD Display
• LED Display

Number of Displays Supported: 1
Maximum Load Capacity: 70.17 kg
Maximum Screen Size Supported: 177.8 cm (70")
Features:

• Adjustable
• Heavy Duty
• Anti-theft
• Tilt
• Swivel

Physical Characteristics
Color Family: Black
Product Color: Black
Mounting Pattern:

• 200 x 200
• 300 x 300
• 400 x 200
• 400 x 400
• 600 x 400
• 200 x 300
• 200 x 400
• 300 x 200
• 600 x 200
• 600 x 300

Product Material:

• Steel
• Aluminium

Height: 48.3 cm
Width: 30.5 cm
Depth: 93.5 cm
Weight (Approximate): 15.74 kg
