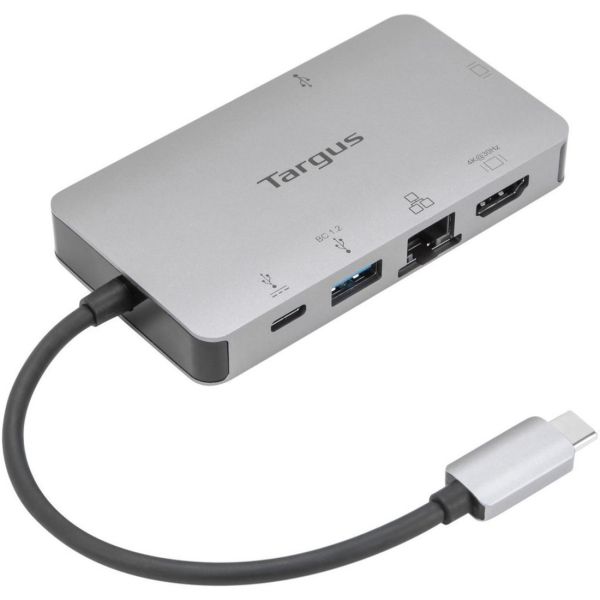

Targus USB-C 4K HDMI/VGA Docking Station with 100W Power Delivery

Marketing Information

Turn your laptop into a workstation with the compact USB-C DP Alt Mode Single Video 4K HDMI/VGA Docking Station with 100W PD Pass-Thru. Connect your USB-C-enabled devices to a single HDMI or VGA display, while also connecting to a Gigabit Ethernet network, and plugging in your key peripherals - like mice, keyboards, flash drives or hard drives - into the USB-A and USB-C ports. You can even keep your laptop charged and powered by connecting your laptop's USB-C power adapter to the USB-C port on the dock. It supports up to 100W (20V/5A) charging max. This dock also provides transfer speeds up to 5Gbps per port. Compact and lightweight, it's easy to take it along with you anywhere you go.

HD or 4K UHD Display

Whether you ...want to run a presentation on a larger display or use an external display, this single video docking station supports either one VGA display up to 1920x1200@60Hz or one HDMI display up to 4K@30Hz.

Connectivity Made Simple

Enhance your productivity and connect to more with 2 USB-A 3.2 Gen 1 ports (1 fast-charging) and 1 USB-C 3.2 Gen 1 port.

Charge and Power Host Device

With up to 100W Power Delivery pass-through, this dock allows you to power and charge your USB-C laptop or host simply by connecting the laptop's power adapter into the USB-C port. Great for those laptops with only one USB-C port.

Perfectly Portable

Slim and light, this dock is perfect for the home, office or anywhere in between. Great for mobile workers or those in hoteling or hot-desking environments.

Plug and Play Simplicity

With no need for additional software, this adapter easily attaches to your USB-C or Thunderbolt™ 3 host device (e.g. laptop) to help you connect to a wired network, more peripherals, and transfer data.

Specifications
Manufacturer: Targus Group International
Manufacturer Part Number: DOCK419EUZ
Manufacturer Website Address: http://www.targus.com/uk/
Brand Name: Targus
Product Model: DOCK419EUZ
Product Name: USB-C 4K HDMI/VGA Docking Station with 100W Power Delivery
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported:

• Notebook
• Monitor
• Keyboard
• Mouse

Number of Displays Supported: 1
Screen Mode Supported: 4K
Maximum Data Transfer Rate: 640 MB/s
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: USB Type C
Total Number of USB Ports: 3
Number of USB Type-A Ports: 2
USB Type-A: Yes
USB Type-C: Yes
USB Type-C Detail: 1 x USB-C 3.2 Gen 1 port
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
VGA: Yes
Number of HDMI Outputs: 1
HDMI: Yes
USB Power Delivery: 100W
Software
Operating System Supported:

• Windows
• macOS
• ChromeOS

Physical Characteristics
Color Family: Grey
Product Color: Grey
Height: 95 mm
Width: 14 mm
Depth: 52 mm
Weight (Approximate): 80 g
Warranty
Limited Warranty: 2 Year
