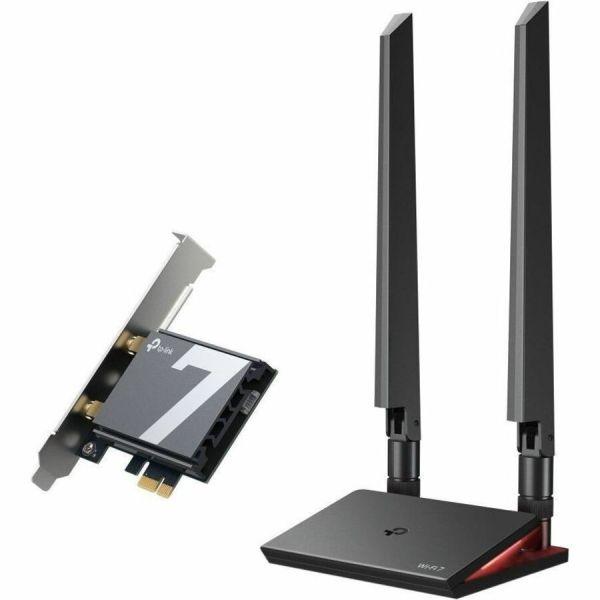

TP-Link BE9300 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter

Marketing Information

Highlights | Incredibly Smooth Wi-Fi Experience

Wi-Fi 7 unlocks the full potential of the 6 GHz band, providing exceptional bandwidth and congestion-free channels exclusive to your desktop. Enhanced by 4096-QAM and 320MHz, TBE550E delivers astonishing wireless speeds, facilitating instant multi-stream media playback.

Maximized Coverage

Two multi-directional and high-performance antennas with a magnetized base extends your existing Wi-Fi reception capabilities, allowing you to stream throughout your home. Place the antenna base anywhere on your desktop to find the optimal location for signal reception.

Multicolor Wi-Fi Status Lighting

With captivating LED lighting effects, the base not only... offers an intuitive display of network status but also allows for effortless customization through its responsive touch switch. This combination enhances both functionality and aesthetics.

Fast Installation via USB Drive

Easily set up your Archer TBE550E using the included USB drive-even without a network connection. Experience a straightforward and user-friendly installation process.

Bluetooth 5.4

Cutting-edge Bluetooth 5.4 offers enhanced reliability and security, ensuring seamless interoperability with game controllers, keyboards, and more. BLE (Bluetooth Low Energy) significantly reduces power consumption.

Refined Security

The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: ARCHERTBE550E
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Line: Archer TBE550E
Product Series: BE
Product Model: BE9300
Product Name: BE9300 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter
Product Type: Wi-Fi/Bluetooth Combo Adapter
Technical Information
Wi-Fi Generation: Wi-Fi 7
Wireless LAN Standard: IEEE 802.11be
Bluetooth Standard: Bluetooth 5.4
Network Band: Tri Band
ISM Band: Yes
UNII Band: Yes
ISM Maximum Frequency: 2.40 GHz
UNII Maximum Frequency: 6 GHz
Wireless Transmission Speed: 9.11 Gbit/s
Interfaces/Ports
Host Interface: PCI Express
Physical Characteristics
Form Factor: Plug-in Card
Card Height: Low-profile
Height: 9.4 cm
Width: 2 cm
Depth: 12.2 cm
Miscellaneous
Package Contents:

• BE9300 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter
• Magnetized Antenna Base with 1m Braided RF Cable
• 2 x High-Performance Antennas
• Low-Profile Bracket
• Bluetooth Header Cable
• Quick Installation Guide
• Resource USB Drive

Certifications & Standards:

• FCC
• CE
• IC
• NCC
• JRF
• VCCI
• BSMI
