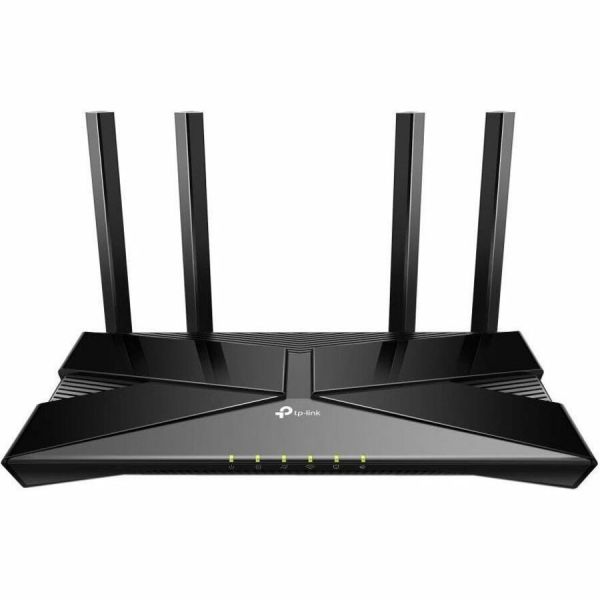

TP-Link Archer VX1800v AX1800 Dual-Band Wi-Fi 6 VDSL/ADSL Modem Router

Marketing Information

Stay Fast with Wi-Fi 6

AX1800 Dual-Band Wi-Fi 6

VDSL/ADSL Modem Router

Archer VX1800v

Wi-Fi 6 Upgrades Incedible Speed

The Archer VX1800v features Super VDSL (VDSL2 Profile 35b), the latest generation of DSL technology. Downstream is increased by up to 350 Mbps, 3.5× faster than its VDSL2 predecessor. Compatibility with the leading ISPs provides ideal IP-based connections for any home. The integrated DSL port also supports all standard DSL connections.

Empower Your Devices with Wi-Fi 6 | Higher Speed

Enjoy unrivaled levels of speed with next-gen WiFi 6. By combining 1024-QAM and a long OFDM symbol, Archer VX1800v delivers total speeds of up to 1800 Mbps - 1201 Mbps on 5 GHz... and 574 Mbps on 2.4 GHz. Game online, watch 4K videos, and crank up everything to the highest settings without lag.

Greater Coverage

Beamforming technology and high-performance antennas combine to adapt WiFi coverage to perfectly fit home and concentrate signal strength towards every device.

More Connection

WiFi 6 also improves network capacity to better address the increased demand on home networks. With MU-MIMO and OFDMA, Archer VX1800v transmits data to and from multiple devices at the same time, reaching up to 4× more capacity, greatly increasing your devices' transmission efficiency and the throughput of your whole network under the same conditions.

Versatile Connectivity

Archer VX1800v is compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, and 3G/4G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fiber modems, and the USB 2.0 port supports 3G/4G dongles for a solid main or backup internet connection.

Gigabit Wired Connections and More

• The USB port can be used to share files, music, and videos within your network at high speeds.
• Equipped with a high-performance analog telephone system. Connecting external storage through the USB port can also realize the voice message function, without worrying about missing calls or deleting messages.
• Plug your PCs, smart TVs, and game consoles into one of the three Gigabit Ethernet LAN ports for reliable wired connections of your broadband speed up to 1 Gbps.

Flexibly Create Whole Home Mesh WiFi

If you have any dead zones at home, just add another Easymesh-Compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.

WiFi Dead Zone Killer

Eliminate weak signal areas with WiFi coverage for the whole house

Smart Roaming

Uninterrupted streaming when moving around your home

One WiFi Name

No more switching WiFi network names

Easy Setup and Use

Set up the Archer VX1800v in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Tether also provides Automatic Firmware Updates to always give your network the latest performance and security.

WPA3 Security

More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: Archer VX1800V
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Line: Archer VX1800v
Product Name: Archer VX1800v AX1800 Dual-Band Wi-Fi 6 VDSL/ADSL Modem Router
Product Type: Wireless Router
Technical Information
Wi-Fi Generation: Wi-Fi 6
Network Band: Dual Band
MU-MIMO Technology: Yes
Wireless Specifications
Broadband Transmission Technology:

• VDSL
• ADSL
• VDSL2
• ADSL2+
• ADSL2

Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
ISM Band: Yes
UNII Band: Yes
ISM Maximum Frequency: 2.40 GHz
UNII Maximum Frequency: 5 GHz
Total Number of Antennas: 4
Number of External Antennas: 4
Total Wireless Transmission Speed: 221.88 MB/s
Encryption Standard:

• WPA2-PSK/WPA-PSK
• WPA2-PSK
• WPA3-Personal
• WPA2-ENT
• WPA3
• WEP
• WPA
• WPA2

Firewall Type:

• NAT
• SPI

Wireless Performance: AX1800
Interfaces/Ports
Total Number of Network Ports: 4
Number of Network (RJ-45) Ports: 3
USB: Yes
Number of Broadband (RJ-45) Ports: 1
USB Standard: USB 2.0
Network & Communication
Ethernet Technology: Gigabit Ethernet
VPN Supported: Yes
Multi-SIM Supported: No
Physical Characteristics
Form Factor: Desktop
Height: 41.6 mm
Width: 260.2 mm
Depth: 135 mm
Miscellaneous
Package Contents:

• Archer VX1800v AX1800 Dual-Band Wi-Fi 6 VDSL/ADSL Modem Router
• External Splitter
• RJ11 DSL Cable
• RJ45 Ethernet Cable
• Power Adapter
• Quick Installation Guide

Certifications & Standards:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• ITU-T G.993.2
• ITU-T G.993.5 (G.vector)
• ITU-T G.998.4 (G.INP)
• Full-rate-ANSI T1.413 Issue 2
• ITU-T G.992.1 (G.DMT)
• ITU-TG.992.2 (G.Lite)
• ITU-T G.994.1 (G.hs)
• ITU-T G.995.11
• ITU-T G.992.3 (G.DMT.bis)
• ITU-T G.992.4 (G.lite.bis)
• ITU-T G.992.5(Annex A/L/M)

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
