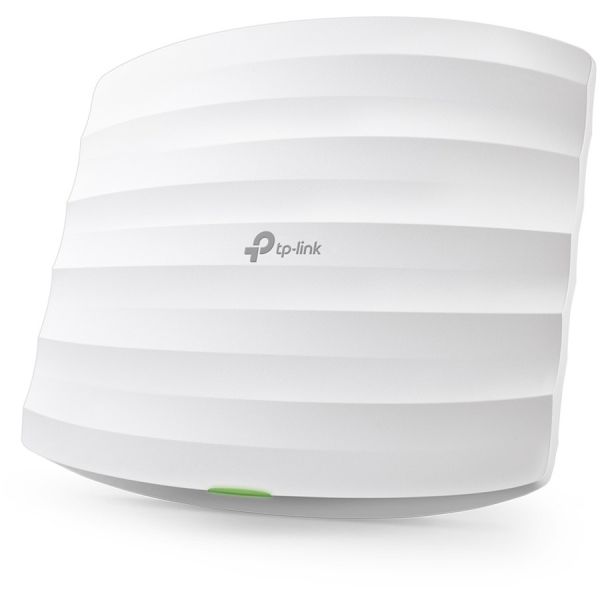

TP-Link 300Mbps Wireless N Ceiling Mount Access Point

Marketing Information

What This Product Does

The TP-LINK's EAP110 business Access Point provides a flexible, easy-to-deploy, manageable and robust security business-class wireless network solution. Simple mounting design to easily mount to a wall or ceiling. WLAN configuration and management are simplified through centralized management software. EAP110 also features captive portal and auto RF management, making it ideal for the high-density, intensive demanding businesses environment, include campus, hotels, malls and offices.

Flexible Placement - Easy mounting design & PoE

The EAP110's "ceiling lamp" appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to ble...nd in with most interior decorations. EAP110 supports Passive Power over Ethernet (Passive PoE) to make deployment effortless and flexible.

Simple and Scalable Business Wi-Fi Management - EAP Controller Software

The EAP Controller Software represents a cost-effective 'centralized management' solution for wireless networks of both small and medium business sectors (SMB). The software enables administrators to manage hundreds of EAPs easily from any PC on the network. Includes such administrative features as centralized configuration, real-time monitoring, graphical analysis of network traffic and batch firmware updates.

Powerful and Intuitive Software

Free controller software, no additional hardware controller required

Easy-to-use, no special training necessary

Upload floor plans for a more Intuitive Wi-Fi management

Batch firmware update support for effective administration

Advanced security features including Captive Portal, Rogue AP Detection

Visual Network Monitoring

Intuitively view traffic on any individual AP on the network

Graphical activity of clients connected to the network

Visual analytics of overall network usage and traffic distribution

Efficient Guest Authentication - Captive Portal

Captive portal provides one convenient method of authentication for Wi-Fi guests. A captive portal requires users to perform certain actions before network access is allowed. The required action must be verified by an external portal server or customized database by the administrator, which can be simply viewing and agreeing to an acceptable use policy, or entering a user ID and password.

Robust Safety Strategy - Multiple Wi-Fi Security Measures

The EAP110 supports the enterprise class Wi-Fi security, including WPA/WPA2-enterprise encryption and 802.1X radius. In addition, Multi-SSID, Wireless Isolation, MAC Filtering and Rogue AP detection features help to decrease network security threats.

Applicable to Multi-user Environment - Designed for Enterprise Performance

With easy mounting design, PoE power supply, Centralized management software, Captive portal, enterprise class security, and Enterprise hardware, EAP110 is specially designed for the highest-density, most demanding enterprise environments, including schools, hotels, and enterprises.

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: EAP110
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Model: EAP110
Product Name: 300Mbps Wireless N Ceiling Mount Access Point
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11n
Frequency Band: 2.48 GHz
Total Number of Antennas: 2
Number of Internal Antennas: 2
Wireless Transmission Speed: 300 Mbit/s
Interfaces/Ports
Ethernet Technology:

• Ethernet
• Fast Ethernet

Number of Network (RJ-45) Ports: 1
PoE (RJ-45) Port: No
PoE PD Port: Yes
VGA: No
HDMI: No
USB: No
Powerline: No
Management Port: Yes
Physical Characteristics
Form Factor:

• Ceiling Mountable
• Wall Mountable

Height: 48.3 mm
Width: 180.3 mm
Depth: 180.3 mm
