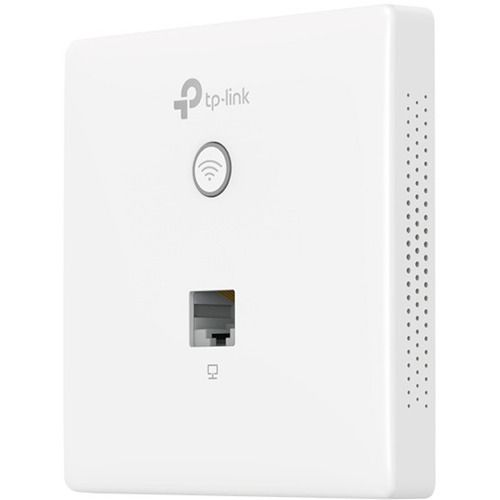

TP-Link 300Mbps Wireless N Wall-Plate Access Point

Marketing Information

• Easy-mount construction allows installation into any standard EU-type data wall-box
• Compact, low-profile design fits discreetly with any existing interior style
• Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs
• Support Power over Ethernet (802.3af) for convenient and affordable installation
• Enterprise class Wi-Fi security helps to decrease network security threats
• Captive portal provides one convenient method of authentication for Wi-Fi guests

Perfectly Formed

The EAP115-Wall would blend seamlessly into any business setting with a refined, minimalist appearance. A slimline design includes casing that's just 11 mm in thickn...ess.

Effortless Deployment

With 802.3af Power over Ethernet supported there's no need for additional wiring. Simply plug in existing Ethernet cables and you're ready to go.

Complete Wireless Coverage

An EAP in each room guarantees a strong wireless signal and allows guests to enjoy their own private Wi-Fi network.

Centralized Management

Manage and monitor hundreds of EAPs with ease, all from a single location. TP-Link's free Auranet Controller Software provides an intuitive management interface with no special training required. Wi-Fi management has never been so simple or cost-effective.

Customized Guest Authentication with Captive Portal

Captive portal provides a convenient method of authentication for Wi-Fi guests. Choose from a range of authentication options and create a unique authentication page to advertise your business to users.

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: EAP115-WALL
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Series: EAP
Product Model: EAP115-Wall
Product Name: 300Mbps Wireless N Wall-Plate Access Point
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11n
Frequency Band: 2.40 GHz
Total Number of Antennas: 2
Number of Internal Antennas: 2
Wireless Transmission Speed: 300 Mbit/s
Interfaces/Ports
Ethernet Technology: Fast Ethernet
Number of Network (RJ-45) Ports: 2
PoE (RJ-45) Port: No
PoE PD Port: Yes
VGA: No
HDMI: No
USB: No
Powerline: No
Management Port: No
Physical Characteristics
Form Factor: Wall Mountable
Height: 30.5 mm
Width: 86.4 mm
Depth: 86.4 mm
Miscellaneous
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
