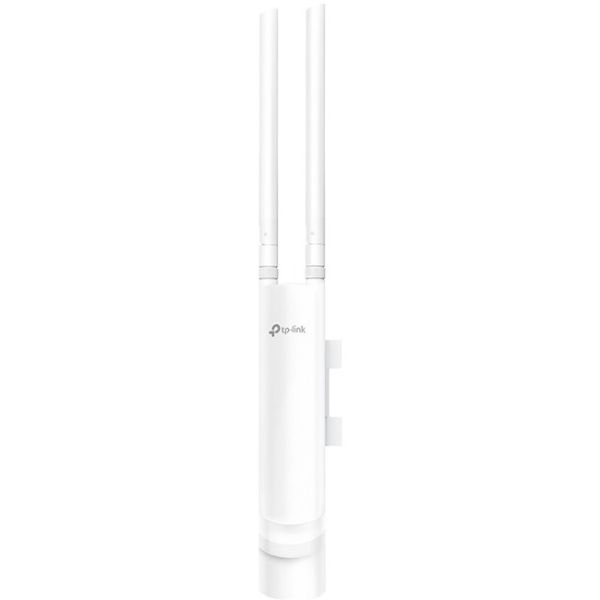

TP-Link AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point

Marketing Information

Gigabit Wi-Fi Speeds with MU-MIMO Technology

EAP225-Outdoor supports simultaneous dual band speed of up to 1200Mbps. Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, EAP225-Outdoor can communicate with multiple clients at the same time which making it ideal for high density environment.

Excellent Hardware Designs

With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.

Detachable Antennas

EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.
<...br />Delicate Appearance Even Better for Indoor Applications

EAP225-Outdoor is just similar to a cellphone, with dimension: 8.5 × 1.8 × 1.1in. (215 × 46 × 27mm)

Multiple PoE Options for Easy Installation

EAP225-Outdoor supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter.

Flexible Deployment

EAP225-Outdoor can be easily installed on a wall or to a pole with the mounting kits provided.

Wi-Fi That Goes the Distance

With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+ at 2.4GHz and 300m+ at 5GHz in outdoor settings.

Specially Designed Weatherproof Enclosure for Outdoor Environment

Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.

4KV Lightning Protection and 15KV ESD Protection
No Ingress of Dust
Water Proof Enclosure

Efficient Centralized Network Management

With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It's network management as it should be - efficient and intuitive.

More from the Manufacturer

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: EAP225-Outdoor
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Model: EAP225-Outdoor
Product Name: AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11ac
Network Band: Dual Band
Frequency Band:

• 5 GHz
• 2.40 GHz

Indoor/Outdoor: Outdoor
Wireless Transmission Speed: 1.17 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Interfaces/Ports
Ethernet Technology: Gigabit Ethernet
Number of Network (RJ-45) Ports: 1
PoE PD Port: Yes
VGA: No
HDMI: No
USB: No
Powerline: No
Management Port: Yes
Power Description
Power Consumption: 10.50 W
Physical Characteristics
Form Factor:

• Wall Mountable
• Pole-mountable

Height: 27.9 mm
Width: 215.9 mm
Depth: 45.7 mm
Miscellaneous
Package Contents:

• AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
• Mounting Kits
• Power Adapter
• Installation Guide

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
