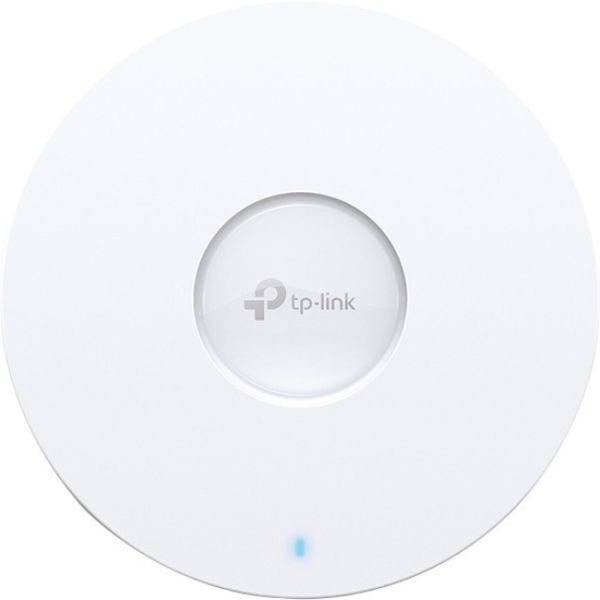

TP-Link AX3000 Ceiling Mount WiFi 6 Access Point

Marketing Information

The New Slimline Business WiFi 6

AX3000 Ceiling Mount WiFi 6 Access Point

AX3000 WiFi 6 Speed

2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz

160 MHz Channel

Double the data at peak transmission times on a single stream with HE160

Seamless Roaming

Uninterrupted streaming when moving between APs

High-Efficiency WiFi 6

More connected devices can enjoy faster speeds

Auto Channel Selection and Power Adjustment

Optimize overall performance by reducing WiFi interference

Ultra-Slim Design

Φ160 mm × 33.6 mm elegant design brings more agility

Centralized Cloud Management

Manage t...he whole network locally or from the cloud

Omada Mesh Technology

More flexible and convenient wireless deployment

PoE+ Powered

Supports both DC (adapter sold separately) and 802.3at PoE+ for flexible installations

Designed for Business EnvironmentsRequiring High-Performance WiFi | Hospitality

High-quality and full coverage Guest WiFi

Education

High-security WiFi to connect more devices

Shopping Mall

Seamless marketing WiFi coverage to boost business

Office

Stable, seamless, and high-security WiFi coverage

Meeting Room

Faster streaming, downloading, video conferencing, and more

Power up Your Business with New-Era Business WiFi 6

WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.

Lightning-Fast AX3000 WiFi 6 Speeds

New-era business WiFi 6 with speeds up to 2976 Mbps brings more than twice the speed of WiFi 5. Every application feels more fluid with drastically improved WiFi speeds.

1024 QAM

25% more data encoded at one time

Long OFDM Symbol

11% faster speed

HE160

Double the data at peak transmission times on a single stream

Seamless Integration into Omada SDN

The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.

Auto Channel Selection and Power Adjustment to Optimize Overall Performance

Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

Easy Deployment & Higher Performance by Omada Mesh | Easy Pairing, Less Wiring

With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

More from the Manufacturer

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: EAP653
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Model: EAP653
Product Name: AX3000 Ceiling Mount WiFi 6 Access Point
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
Network Band: Dual Band
Frequency Band:

• 2.40 GHz
• 5 GHz

Wireless Transmission Speed: 2.93 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Data Encryption: Yes
Encryption Standard:

• WPA-PSK
• WPA-ENT
• WPA2-PSK
• WPA2-ENT
• WPA3-PSK
• WPA3-ENT

Interfaces/Ports
Ethernet Technology: Gigabit Ethernet
Number of Network (RJ-45) Ports: 1
PoE PD Port: Yes
Power Description
Power Consumption: 14.70 W
Physical Characteristics
Form Factor:

• Ceiling Mountable
• Wall Mountable
• Junction Box Mount

Antenna Form Factor: Internal
Height: 33 mm
Width: 160 mm
Depth: 160 mm
