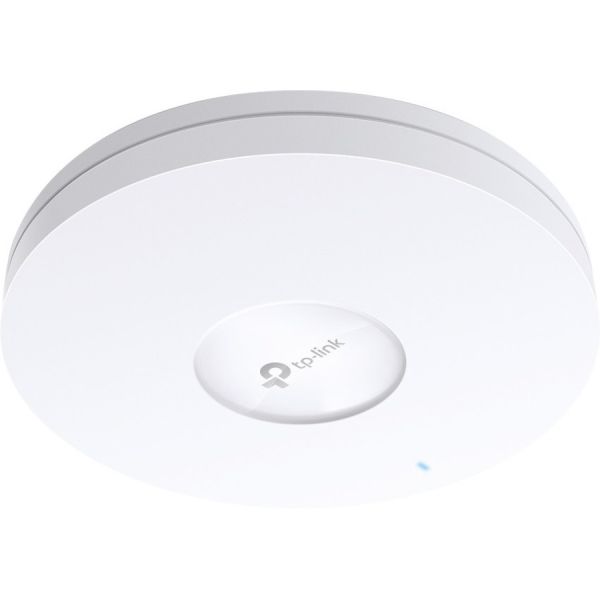

TP-Link AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point

Marketing Information

High-Density Connectivity with 4× Increased Capacity

OFDMA and Uplink & Downlink MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.

Hospitality

High Quality and Full Coverage Wi-Fi

Restaurant

Full Wi-Fi Coveragein High-Density Environment

Shopping Mall

Social Marketing for O2O

Meeting Room

Wireless and Wired Connections for dense usage

Railway Station

High-Density Wi-F

Blazing Fast Speed with 8 Spatial Streams

The Omada Wi-Fi 6 Access Point features the la...test 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.

Omada SDN-Smarter Cloud Solution for Business Networking

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Hassle-Free Centralized Cloud Management:

100% centralized cloud management of whole network from different sites-all controlled from a single interface anywhere, anytime.

Optimized Wired Performance with 2.5 GE PoE+ Port

Armed with a 2.5 Gigabit Ethernet Port, the EAP660 HD delivers exceptional multi-gigabit performance to support the insatiable demand for better and faster Wi-Fi. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment.

Seamless Roaming

802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving.This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Boost Network Efficiency in All Aspects With Rich Advanced Features

Band Steering

Automatically moves dual band devices onto the wider 5GHz band for faster connections.

Load Balance

ensures large numbers of users have smooth network experiences in high-density business networks

Airtime Fairness

Increases average network throughput in heavily congested environments

Easy to Mount with Refined Industrial Design

• push up
• simply rotate to lock

Secure Guest Network with Facebook Wi-Fi and SMS Login

Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.

More from the Manufacturer

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: EAP660 HD
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Model: EAP660 HD
Product Name: AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point
Product Condition: New
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: 802.11ax
Network Band: Dual Band
Frequency Band:

• 2.40 GHz
• 5 GHz

Indoor/Outdoor: Outdoor
Wireless Transmission Speed: 3.52 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Data Encryption: Yes
Encryption Standard:

• WEP
• WPA-PSK
• WPA2-PSK
• WPA3-PSK
• WPA3-Personal
• WPA-ENT
• WPA2-ENT
• WPA3-ENT

Interfaces/Ports
Ethernet Technology: 2.5 Gigabit Ethernet
Number of Network (RJ-45) Ports: 1
PoE PD Port: Yes
Power Description
Power Consumption: 21.50 W
Physical Characteristics
Color Family: White
Product Color: White
Form Factor:

• Ceiling Mountable
• Wall Mountable

Antenna Form Factor: Internal
Height: 63.5 mm
Width: 243.8 mm
Depth: 243.8 mm
Weight (Approximate): 1.31 kg
Miscellaneous
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
