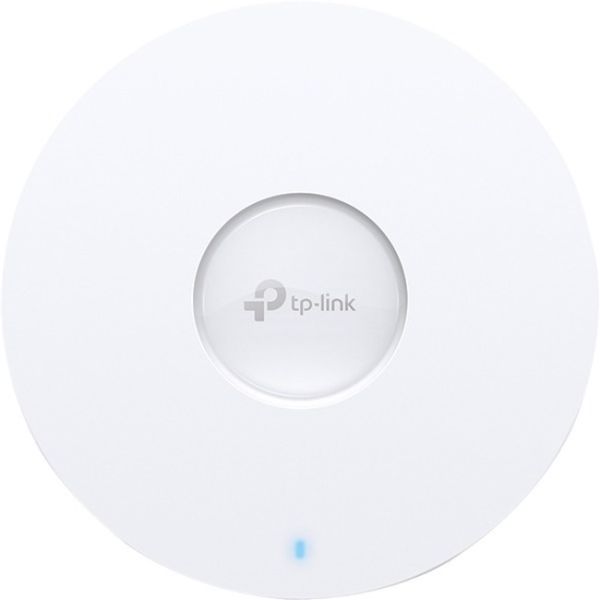

TP-Link AX5400 Ceiling Mount WiFi 6 Access Point

Marketing Information

High-End Business WiFi 6 to Power Up Your Business

AX5400 Ceiling Mount Wi-Fi 6 Access Point

AX5400 WiFi 6 Speed

4804 Mbps on 5 GHz + 574 Mbps on 2.4 GHz

High-Efficiency WiFi 6

More connected devices can enjoy faster speeds

Centralized Cloud Management

Manage the whole network locally or from the cloud

2.5GE Wired Performance

Boosts overall throughput with a 2.5 Gbps Ethernet port

160 MHz Channel

Double the data at peak transmission times on a single stream with HE160

Auto Channel Selection and Power Adjustment

Optimize overall performance by reducing WiFi interference

Omada Mesh Tech...nology

More flexible and convenient wireless deployment

Seamless Roaming

Uninterrupted streaming when moving between APs

PoE+ Powered

Supports both DC (adapter included) and 802.3at PoE+ for flexible installations

Designed for Business Environments Requiring High-Performance WiFi | Hospitality

High-quality and full coverage Guest WiFi

Education

High-security WiFi to connect more devices

Shopping Mall

Seamless marketing WiFi coverage to boost business

Office

Stable, seamless, and high-security WiFi coverage

Meeting Room

Faster streaming, downloading, video conferencing, and more

High-End Business Wi-Fi 6 Bring Real Power to Your Business

WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.

Blazing-Fast AX5400 Wi-Fi 6 Speeds

High-end business WiFi 6 with speeds up to 5378 Mbps brings 2.6-time speeds than WiFi 5.

• 1024 QAM 25% more data encoded at one time
• Long OFDM Symbol 11% faster speed
• HE160 Double the data at peak transmission times on a single stream

Seamless Integration into Omada SDN

The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network-all controlled from a single interface.

• Hardware, Software, or Cloud-Based Controllers
• Centralized Cloud Management
• Intelligent Monitoring
• Zero-Touch Provisioning (ZTP)

Auto Channel Selection and Power Adjustment to Optimize Overall Performance

Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: EAP670
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Model: EAP670
Product Name: AX5400 Ceiling Mount WiFi 6 Access Point
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
Network Band: Dual Band
Frequency Band:

• 2.40 GHz
• 5 GHz

Wireless Transmission Speed: 5.27 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Data Encryption: Yes
Encryption Standard:

• WPA3
• WPA-PSK
• WPA-ENT
• WPA2-PSK
• WPA2-ENT
• WPA3-Personal
• WPA3-ENT

Interfaces/Ports
Ethernet Technology: 2.5 Gigabit Ethernet
Number of Network (RJ-45) Ports: 1
PoE PD Port: Yes
Power Description
Power Consumption: 19.80 W
Physical Characteristics
Form Factor:

• Ceiling Mountable
• Wall Mountable

Antenna Form Factor: Internal
Height: 63.5 mm
Width: 243.8 mm
Depth: 243.8 mm
