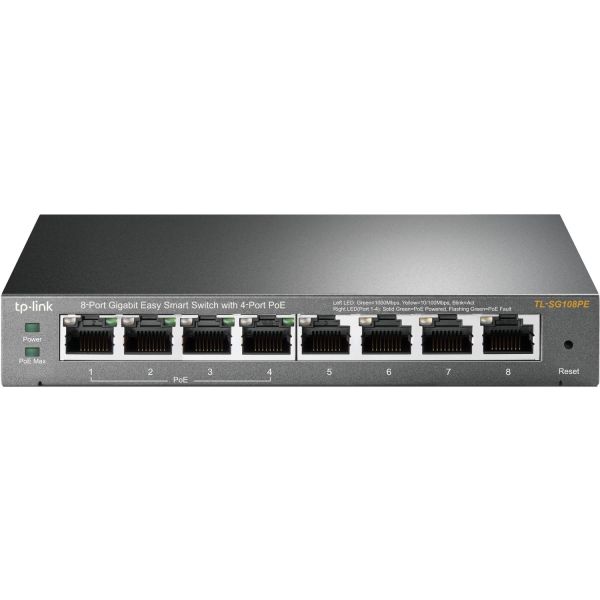

TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE

Marketing Information

• 8 10/100/1000Mbps RJ45 ports
• With 4 PoE ports, data and power can be transferred on one single cable
• Provides network monitoring, traffic prioritization and VLAN features
• Simple network set-up on top of plug-and-play connectivity
• Web-based user interface and Easy Smart Configuration Utility simplify configuration

The TL-SG108PE is an 8-port Gigabit Easy Smart Switch with 4 PoE ports, represents a powerful upgrade from an unmanaged switch. It is designed specically for small businesses that require simple network management and PoE function. The TL-SG108PE can connect and power up to four PoE devices, such as wireless access points (APs), IP cameras, and IP phones. Through its web-bas...ed user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, trafc prioritization, and enhanced QoS. Additionally, with port-based, tag-based and MTU VLAN, TL-SG108PE can improve security and meet more network segmentation requirements.

Power Over Ethernet

4 of the 8 Auto-Negotiation RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Effective Management

TL-SG108PE offers network monitoring for users to observe trafc behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, trafc prioritization, and enhanced QoS. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG108PE can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the trafc based on Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG108PE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG108PE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.

Easy to Use

TL-SG108PE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space while also being Rack-mountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.

More from the Manufacturer

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: TL-SG108PE
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Line: EasySmart
Product Model: TL-SG108PE
Product Name: 8-Port Gigabit Easy Smart Switch with 4-Port PoE
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 8
Uplink Port: No
Modular: No
Stack Port: No
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 4 x Gigabit Ethernet PoE
• 4 x Gigabit Ethernet Network

Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Network & Communication
Layer Supported: 2
Networking Standards:

• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3af
• IEEE 802.3x
• IEEE 802.1Q
• IEEE 802.1p

Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 55 W
Power Source: Power Adapter
Power Consumption: 5.20 W
Physical Characteristics
Product Material: Metal
Form Factor:

• Desktop
• Wall Mountable

Height: 25.4 mm
Width: 157.5 mm
Depth: 101.6 mm
