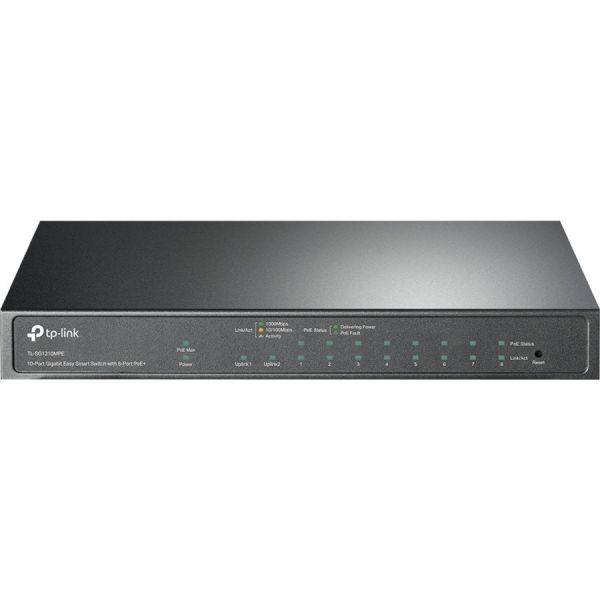

TP-Link 10-Port Gigabit Easy Smart Switch with 8-Port PoE+

Marketing Information

What This Product Does

TP-Link TL-SG1210MPE is an easy smart switch with 9× gigabit RJ45 ports and 1× gigabit combo SFP/RJ45 port that requires no configuration. With 8× PoE (Power over Ethernet) ports, it can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Professional 10-Port Switch with 8-Port PoE+ (123 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W... on each PoE port. The total 123 W PoE power budget for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

System Self-Healing with PoE Auto Recovery

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without the need for manual monitoring and restart.

Intelligent Power Management

When total power consumption exceeds 123 W, the intelligent power management will cut the lower priority port power. This ensures the high-priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing

The interior components of TL-SG1210MPE are protected by high-quality metal casing to ensure a long product life. Its fanless design delivers zero added noise in its locations. Having passed an array of stringent reliability tests, TL-SG1210MPE delivers switching performance you can depend on.

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: TLSG1210MPE
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Line: EasySmart
Product Model: TL-SG1210MPE
Product Name: 10-Port Gigabit Easy Smart Switch with 8-Port PoE+
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 10
Modular: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 8 x Gigabit Ethernet PoE+
• 1 x Gigabit Ethernet Network
• 1 x Gigabit Ethernet TP/SFP Combo

Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Ethernet Technology: Gigabit Ethernet
Network Technology:

• 10/100/1000Base-T
• 1000Base-X

I/O Expansions
Total Number of Expansion Slots: 1.0
Expansion Slot Type: SFP (mini-GBIC)
Shared SFP Slot: Yes
Number of SFP Slots: 1
Network & Communication
Layer Supported: 2
Networking Standards:

• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3af
• IEEE 802.3x
• IEEE 802.1Q
• IEEE 802.1p
• IEEE 802.3at
• IEEE 802.3z

Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 123 W
Power Source: Power Adapter
Power Consumption: 7.66 W
Physical Characteristics
Product Material: Metal
Form Factor: Desktop
Height: 25.4 mm
Width: 208.3 mm
Depth: 124.5 mm
Miscellaneous
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
