TP-Link Omada AX3000 Gigabit VPN Router

Marketing Information

Flexible Wi-Fi Coverage through Business Wired Connectivity

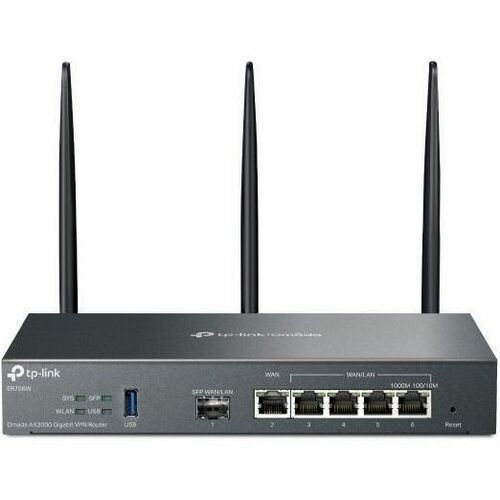

Omada AX3000 Gigabit VPN Router

• 2402 Mbps + 574 Mbps
• 6× Gigabit Ethernet Ports
• Omada Mesh Technology
• IPSec/SSL/Wireguard/PPTP/L2TP VPN
• Centralized Management
• Load Balancing
• Powerful Firewall
• Omada App

Ubiquitous Connectivity Starts with WiFi 6

ER706W is an enterprise-grade dual-band wireless router. It's ideal for remote administration that requires high performance due to the revolutionary combination of the latest WiFi 6 technologies, including HE160, OFDMA, 1024 QAM, and more. Simultaneously supporting 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, ER706W's concurrent transmission rate reaches up to 3 Gbps. Buffe...rless network experience is at your fingertips.

Up to Five WAN Ports & One USB 3.0 Port for Mobile Broadband

Up to 5× WAN SFP and RJ45 ports allow the router to support various internet access requirements. Multi-WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. The USB 3.0 port delivers a higher transmission rate for mobile connectivity. Mobile broadband via a 4G/3G modem is also supported for WAN backup by connecting to the USB port.

Professional Hardware Empowers the Wireless Future

The triple external detachable antenna design grants ER706W excellent wireless coverage, reliable signal strength, and higher receiving sensitivity. It's easier for users to adjust the quantity and angle of antennas to fit various network environments.

ER706W adopts steel material for higher thermal conductivity and heat dissipation, ensuring operation reliability.

Self-Organizing Network with Omada Access Points

ER706W is able to seamlessly connect to Omada access points that support mesh technology, ideal for large-scale environments. Intelligent self-organization optimizes the best path between ER706W and Omada Access Points while self-healing ensures you stay online even when one AP is disrupted.

High-Security VPN

Pass-through traffic and a variety of VPN protocols, such as IPSec/SSL/Wireguard/PPTP/L2TP VPN, are available on ER706W, giving consumers versatile options. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment. The router also features a built-in hardware engine to boost VPN performance.

Abundant Security Features | Powerful Firewall

Advanced firewall policies protect your network and data.

Convenient VLAN Support

Create virtual network segments for enhanced security and simplified network management.

DoS Defense

Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.

IP/MAC/URL Filtering

Forcefully prevent viruses and attacks from intruders.

IP-MAC Binding

Reserves static IP assignment for clients to defend against ARP attacks and spoofing.

One-Click ALG Activation

One-Click ALG Activation for applications such as FTP, H323, SIP, IPsec, and PPTP.

Omada SDN-The Smarter Cloud Solution for Business Networking

The path to the future of wireless begins with the Omada Software Defined Networking (SDN) solution. As the gateway that seamlessly integrates into the Omada SDN platform, ER706W allows for remote and centralized management, anywhere, anytime.

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: ER706W
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Model: ER706W
Product Name: Omada AX3000 Gigabit VPN Router
Product Type: Wireless Router
Technical Information
Wi-Fi Generation: Wi-Fi 6
Network Band: Dual Band
MU-MIMO Technology: Yes
Processor Type: Cortex A53
Processor Core: Quad-core (4 Core)
Memory Technology: DDR4 SDRAM
Standard Memory: 512 MB
Wireless Specifications
Broadband Transmission Technology: Ethernet
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax
ISM Band: Yes
UNII Band: Yes
ISM Maximum Frequency: 2.40 GHz
UNII Maximum Frequency: 5 GHz
Total Number of Antennas: 3
Number of External Antennas: 3
Total Wireless Transmission Speed: 372 MB/s
Encryption Standard:

• SHA-1
• AES (256-bit)
• SHA-256
• SHA-384
• SHA-512
• WPA-PSK
• WPA2-PSK
• WPA3-PSK
• WPA-ENT
• WPA2-ENT
• WPA3-ENT
• MD5
• DES
• 3DES
• AES (128-bit)
• AES (192-bit)

Firewall Type: NAT
Wi-Fi Mesh System: Yes
Wireless Performance: AX3000
Interfaces/Ports
Total Number of Network Ports: 5
Number of Network (RJ-45) Ports: 4
USB: Yes
Number of Broadband (RJ-45) Ports: 1
USB Standard: USB 3.0
I/O Expansions
Total Number of Expansion Slots: 1
Expansion Slot Type: SFP (mini-GBIC)
Network & Communication
Ethernet Technology: Gigabit Ethernet
VPN Supported: Yes
Storage
Flash Memory Capacity: 128 MB
Physical Characteristics
Form Factor:

• Desktop
• Wall Mountable

Height: 35.6 mm
Width: 226.1 mm
Depth: 132.1 mm
Miscellaneous
Package Contents:

• Omada AX3000 Gigabit VPN Router
• Power Adapter
• Quick Installation Guide

Certifications & Standards:

• CE
• FCC

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
