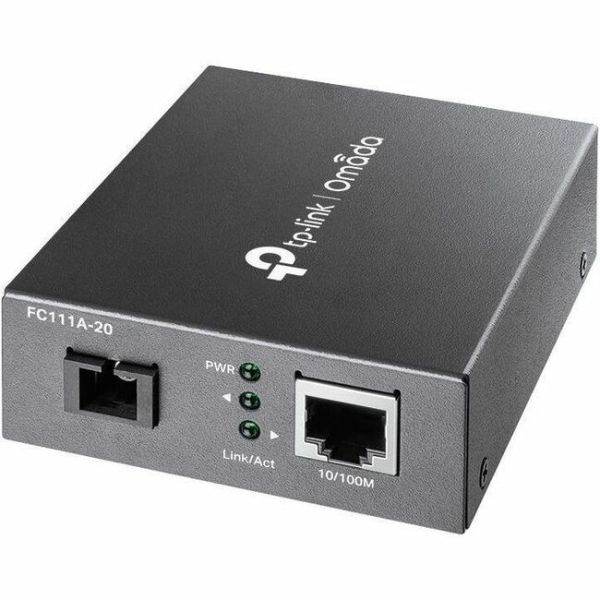

TP-Link FC111A-20 Transceiver/Media Converter

Marketing Information

FC111A-20, FC111B-20, and FC111PB-20 are 100M media converters, each providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. Long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.

Take FC111A-20 as an example, FC111A-20 adopts WDM (Wavelength Division Multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. FC111A-20 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with ...the FC111A-20 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link media converter FC111B-20 is one of the products that can cooperate with FC111A-20.

Besides, FC111A-20 / FC111B-20 can be used as standalone device (no rack required) or used with TP-Link's FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: FC111A20
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Model: FC111A-20
Product Name: FC111A-20 Transceiver/Media Converter
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
SC Port Type: Duplex
Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Fiber Mode Supported: Single-mode
Fiber Optic Cable Wavelength:

• 1310 nm
• 1550 nm

Maximum Data Transfer Rate: 100 Mbit/s
Maximum Distance Supported: 20 km
Fiber Optic Cable Core/Cladding Specification: 9/125 µm
Network & Communication
Ethernet Technology: Fast Ethernet
Network Technology:

• 10/100Base-TX
• 100Base-FX

Power Description
Power Source: Power Adapter
Physical Characteristics
Form Factor:

• Standalone
• Rack-mountable

Height: 27 mm
Width: 94.5 mm
Depth: 73 mm
Miscellaneous
Application/Usage: Network
