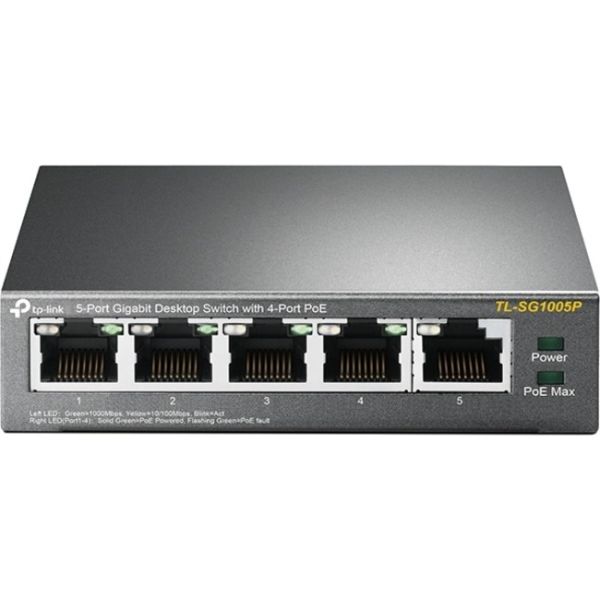

TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+

Marketing Information

What This Product Does

TL-SG1005P is a 5 10/100/1000Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Power over Ethernet

4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those... IEEE 802.3af compliant Powered Devices (PDs).

Overload Arrangement

TL-SG1005P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 56W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

Port Priority Function

Priority (Port 1=Port 2=Port 3>Port 4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 56W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 10W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 10W, no power will be supplied to Port 4.

Easy To Use

TL-SG1005P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-Link's TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.

More from the Manufacturer

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: TL-SG1005P
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Line: JetStream
Product Model: TL-SG1005P
Product Name: 5-Port Gigabit Desktop Switch with 4-Port PoE+
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 5
Uplink Port: No
Modular: No
Stack Port: No
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 1 x Gigabit Ethernet Network
• 4 x Gigabit Ethernet PoE+

Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Network & Communication
Layer Supported: 2
Networking Standards:

• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3x
• IEEE 802.1p

Management & Protocols
Manageable: No
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 65 W
Power Source: Power Adapter
Redundant Power Supply Supported: No
Power Consumption: 4.30 W
Physical Characteristics
Product Material: Metal
Form Factor: Desktop
Height: 1 mm
Width: 99.1 mm
Depth: 99.1 mm
Miscellaneous
Package Contents:

• 5-Port Gigabit Desktop Switch with 4-Port PoE
• Power Adapter
• Installation Guide

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
