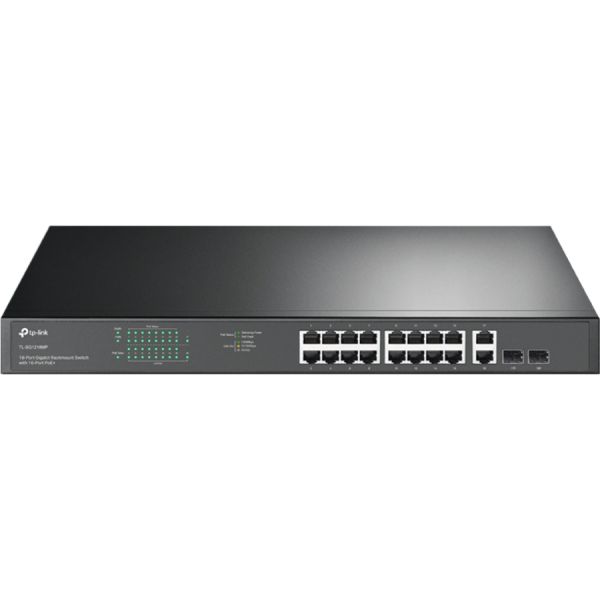

TP-Link 18-Port Gigabit Rackmount Switch with 16 PoE+

Marketing Information

Professional High Power 18-Port Gigabit Rackmount Switch with 16-Port PoE+

Plug and Play, Multi-Purpose PoE Switch with Powerful Performance

JetStream TL-SG1218MP

Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 16× gigabit PoE+ ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

Plug and Play, No Configuration Required

QoS for ...a Lag-Free Experience

Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS).

Intelligent Power Management to Prevent Power Overload

When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports' power to ensure high-priority ports' power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

Wide Operating Temperature with Good Heat Dissipation

Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0-50℃) with reliability.

Multiple Application Scenarios

The TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

Surveillance

Works with IP Cameras

Conference

Call Works with IP Phones

Wi-Fi Coverage

Works with Omada EAPs

Wired Connections

Works with PCs and Printers

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: TL-SG1218MP
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Line: JetStream
Product Model: TL-SG1218MP
Product Name: 18-Port Gigabit Rackmount Switch with 16 PoE+
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 16
Modular: Yes
Port/Expansion Slot Details:

• 16 x Gigabit Ethernet PoE+
• 2 x Gigabit Ethernet Network
• 2 x Gigabit Ethernet TP/SFP Combo

Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Ethernet Technology: Gigabit Ethernet
Network Technology:

• 1000Base-T
• 1000Base-X

I/O Expansions
Total Number of Expansion Slots: 2.0
Expansion Slot Type: SFP (mini-GBIC)
Shared SFP Slot: Yes
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: No
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 250 W
Power Source: Power Supply
Physical Characteristics
Form Factor:

• Rack-mountable
• Desktop

Height: 43.9 mm
Width: 439.4 mm
Depth: 180.3 mm
Miscellaneous
Package Contents:

• 18-Port Gigabit Rackmount Switch with 16 PoE+
• Installation Guide
• Power Cord
• Rackmount Kit
• Rubber Feet

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: Lifetime
