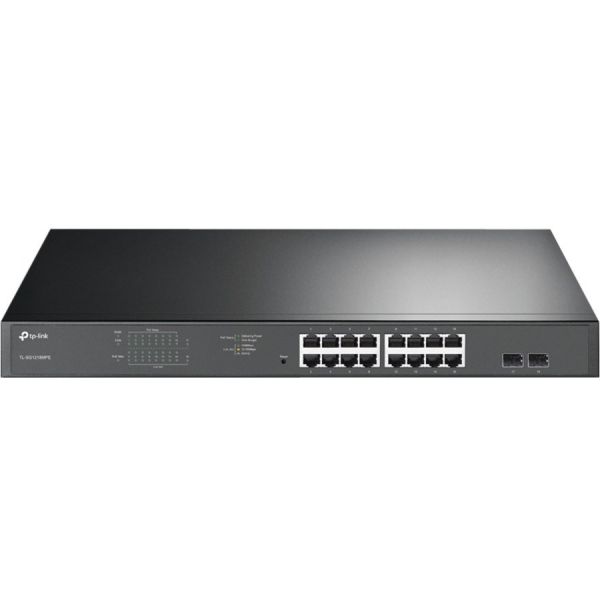

TP-Link JetStream 16-Port Gigabit Easy Smart PoE/PoE+ Switch

Marketing Information

Ideal for Surveillance

TL-SG1218MPE complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget is up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

Intelligent Power Management

When total power consumption excels 192W, the intelligent power management will cut the lower priority port power off to ensure the high priority port's power supply and protect the device from power overload operation.

Advanced Functions for Higher Performance

Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clea...r and lag-free.

IGMP Snooping optimizes multimedia traffic delivery to ensure a better network experience especially for applications like IPTV.

Making Management Easy

TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

More from the Manufacturer

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: TLSG1218MPE
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Line: JetStream
Product Model: TL-SG1218MPE
Product Name: JetStream 16-Port Gigabit Easy Smart PoE/PoE+ Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 16
Modular: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 16 x Gigabit Ethernet PoE+
• 2 x Gigabit Ethernet TP/SFP Combolot

Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Ethernet Technology: Gigabit Ethernet
Network Technology:

• 1000Base-T
• 1000Base-X

I/O Expansions
Total Number of Expansion Slots: 2.0
Expansion Slot Type: SFP (mini-GBIC)
Shared SFP Slot: Yes
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Networking Standards:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3x
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.1Q
• IEEE 802.1p

Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 250 W
Frequency:

• 50 Hz
• 60 Hz

Power Source: Power Supply
Power Consumption: 21.40 W
Physical Characteristics
Product Material: Metal
Form Factor:

• Rack-mountable
• Desktop

Height: 43.2 mm
Width: 439.4 mm
Depth: 180.3 mm
