TP-Link JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+

Marketing Information

Realize More Possibilities with Omada

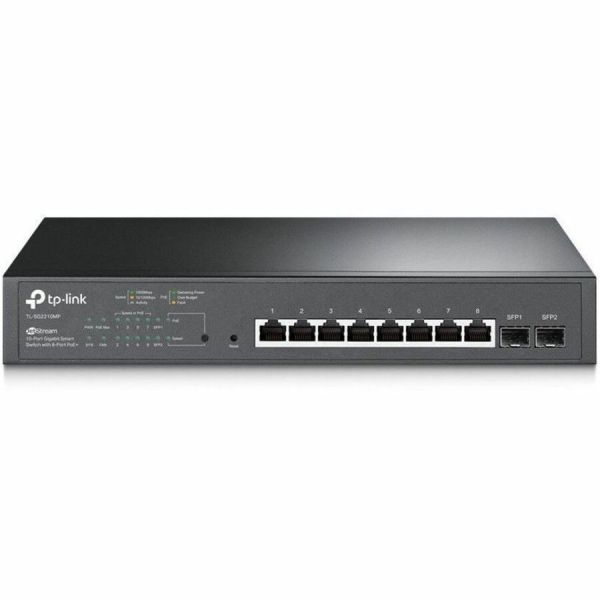

JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+

TL-SG2210MP

Centralized Cloud Management

Omada SDN Platform Integration

Advanced L2 Features

L2/L3/L4 QoS, ACL, IGMP Snooping and More

Abundant Security Strategies

LAN Area Investment Protection

PoE+ Output

8 PoE+ Ports with Total 150 W Power Budget

Software Defined Networking (SDN) with Cloud Access

Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all cont...rolled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: SG2210MP
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Line: JetStream
Product Model: TL-SG2210MP
Product Name: JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 10
Modular: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 8 x Gigabit Ethernet PoE+
• 2 x Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology: Gigabit Ethernet
Network Technology:

• 10/100/1000Base-T
• 1000Base-X

I/O Expansions
Total Number of Expansion Slots: 2.0
Expansion Slot Type: SFP
Number of SFP Slots: 2
Network & Communication
Layer Supported: 4
Networking Standards:

• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3z
• IEEE 802.3ad
• IEEE 802.3x
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3az
• IEEE 802.1D
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.1Q
• IEEE 802.1x
• IEEE 802.1p

Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 150 W
Input Voltage:

• 120 V AC
• 230 V AC

Frequency:

• 50 Hz
• 60 Hz

Power Source:

• Power Supply
• AC
• PoE+

Power Consumption: 173.90 W
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:

• Desktop
• Rack-mountable

Height: 43.2 mm
Width: 294.6 mm
Depth: 180.3 mm
Miscellaneous
Application/Usage:

• Network
• Office
• Retail
• Education

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
