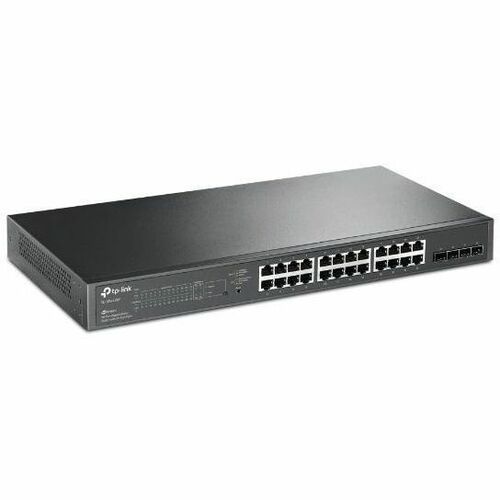

TP-Link JetStream TL-SG2428P 24-Ports Ethernet Switch

Marketing Information

250 W PoE Budget : 24 × 802.3at/af-compliant PoE+ ports with a total power supply of 250 W*.

Full Gigabit Ports : 24 × gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.

Integrated into Omada SDN : Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management : Cloud access and Omada app for ultra convenience and easy management.

Static Routing : Helps route internal traffic for more efficient use of network resources.

Robust Security Strategies : IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimize Voice and Video Application...s : L2/L3/L4 QoS and IGMP snooping.

IPv6 : IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: SG2428P
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Line: JetStream
Product Model: TL-SG2428P
Product Name: JetStream TL-SG2428P 24-Ports Ethernet Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 24
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 24 × 10/100/1000BASE-T Mbps RJ45 Network Ports
• 4 × Gigabit SFP Expansion Slots

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology:

• Fast Ethernet
• Gigabit Ethernet

Network Technology:

• 10/100/1000Base-T
• 1000Base-X

Maximum Data Transfer Rate: 128 MB/s
I/O Expansions
Total Number of Expansion Slots: 4.0
Expansion Slot Type: SFP
Number of SFP Slots: 4
Network & Communication
Networking Standards:

• IEEE 802.3at
• IEEE 802.3af
• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3z
• IEEE 802.3ad
• IEEE 802.3x
• IEEE 802.3az
• IEEE 802.1D
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.1Q
• IEEE 802.1p
• IEEE 802.1x

Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 250 W
Input Voltage:

• 120 V AC
• 230 V AC

Frequency:

• 50 Hz
• 60 Hz

Power Source: Power Supply
Power Consumption: 308.60 W
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Width: 439.4 mm
Depth: 221 mm
Miscellaneous
Package Contents:

• JetStream TL-SG2428P 24-Ports Ethernet Switch
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet

Certifications & Standards:

• CE
• FCC
• RoHS

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
