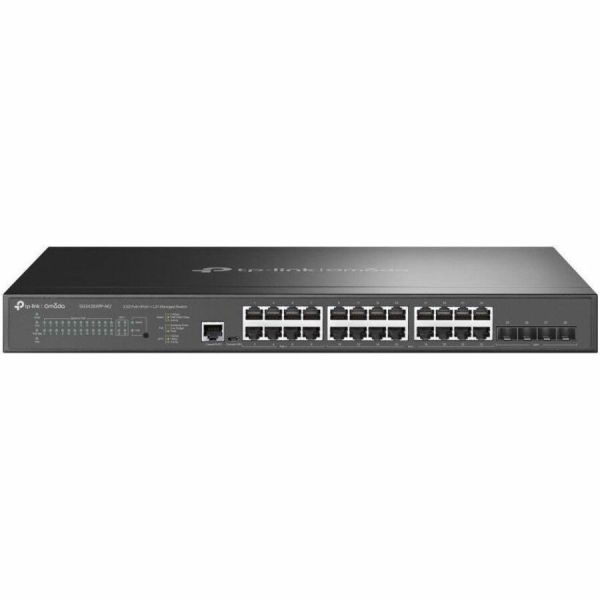

TP-Link JetStream 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++

Marketing Information

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web m...anagement interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: SG3428XPPM2
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Line: JetStream
Product Model: TL-SG3428XPP-M2
Product Name: JetStream 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 24
Uplink Port: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 24 x 10/100/1000Mbps 2.5Gbps RJ-45 Network Port
• 4 x 10Gigabit Ethernet SFP+ Expansion Slots
• 1 × RJ-45 Console Port
• 1 × Micro-USB Console Port

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology:

• Gigabit Ethernet
• 2.5 Gigabit Ethernet
• 10 Gigabit Ethernet

Network Technology:

• 10/100/1000Base-T
• 2.5GBase-T
• 10GBase-X

Maximum Data Transfer Rate: 1.25 GB/s
I/O Expansions
Total Number of Expansion Slots: 4
Expansion Slot Type: SFP+
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 2
Networking Standards:

• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3bz
• IEEE 802.3z
• IEEE 802.3ae
• IEEE 802.3af
• IEEE 802.3bt
• IEEE 802.1x
• IEEE 802.1Q
• IEEE 802.3ah
• IEEE 802.1p
• IEEE 802.3ad
• IEEE 802.1D
• IEEE 802.1w
• IEEE 802.1s
• IEEE 802.3x

Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 500 W
Input Voltage:

• 120 V AC
• 230 V AC

Frequency:

• 50 Hz
• 60 Hz

Power Source: Power Supply
Power Consumption: 629.10 W
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 43.2 mm
Width: 439.4 mm
Depth: 330.2 mm
Miscellaneous
Package Contents:

• JetStream 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet

Application/Usage:

• Network
• Retail
• Office
• Enterprise
• Campus

Certifications & Standards:

• CE
• FCC

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
