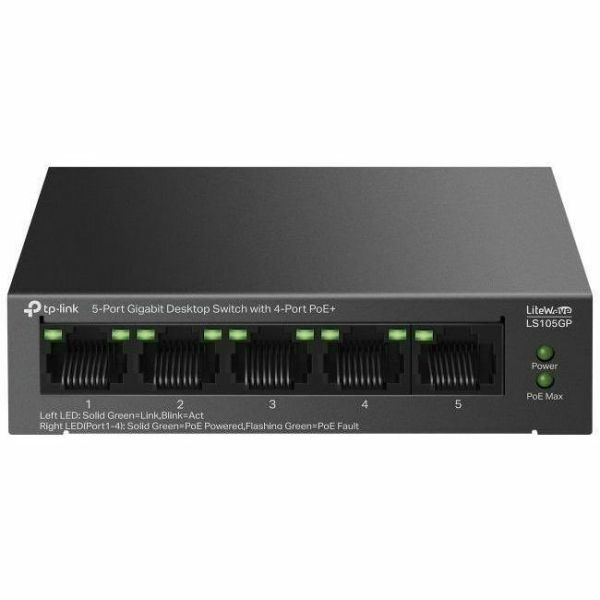

TP-Link LiteWave 5-Port Ethernet Switch

Marketing Information

The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Highlights

• With multiple PoE ports, transfer data and power on one single cable
• Working with IEEE 802.3af /at compliant PDs, expand your network*
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Up to 250 m data and power tr...ansmission under Extend Mode** specially designed for surveillance system
• Isolation Mode (for LS109P&LS1210GP only) allows one-click client traffic separation for higher security and performance
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
• Plug and play, no configuration and installation required

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: LS105GP
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Line: LiteWave
Product Name: LiteWave 5-Port Ethernet Switch
Product Type: Ethernet Switch
Technical Information
Features: Fanless
Interfaces/Ports
Total Number of Network Ports: 5
Network (RJ-45): Yes
Port/Expansion Slot Details: 5 x 10/100/1000 Mbps RJ45 Network Ports
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology:

• Gigabit Ethernet
• Fast Ethernet

Network Technology: 10/100/1000Base-T
Maximum Data Transfer Rate: 128 MB/s
Network & Communication
Networking Standards:

• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3x

Management & Protocols
Manageable: No
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 65 W
Input Voltage: 53 V DC
Power Source: Power Adapter
Power Consumption: 74.46 W
Physical Characteristics
Product Material: Sheet Metal
Form Factor:

• Wall Mountable
• Desktop

Height: 25.4 mm
Width: 99.1 mm
Depth: 99.1 mm
Miscellaneous
Package Contents:

• LiteWave 5-Port Ethernet Switch
• Power Adapter
• Installation Guide

Application/Usage: Business
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
