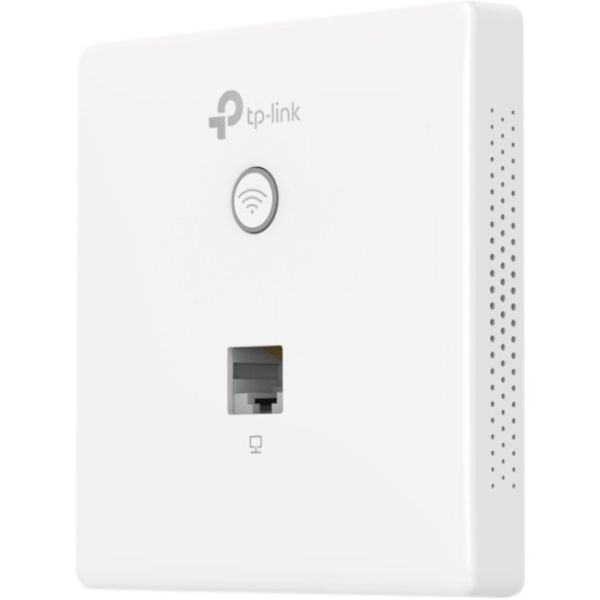

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point

Marketing Information

Unprecedented Thin Design with 11mm

EAP230-Wall

AC Access Point

Simultaneous Dual-Band Multi-User MIMO

802.3af/802.3at PoE Compatibility

Private Connection for Every Room.

EAP230-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories. A device in each room ensures an exclusive, high-speed Wi-Fi connection for every user.

MU-MIMO + Dual-Band: Faster Connection for More Devices

802.11ac wave 2 technology allows multiple users to access the internet at the same time. Speeds up to 1200 Mbps and 2.4 GHz and 5 GHz wireless bands deliver simultaneous high-speed internet access to... various devices.

Seamlessly Blends with any Décor

The same size and shape as a light switch or power outlet faceplate to fit in perfectly in any room.

High-Speed Gigabit Port

Equipped with a Gigabit port to deliver the fastest possible wired transmission.

Effortless Deployment with Power over Ethernet

802.3af/802.3at PoE support means there's no need for extra wiring. Plug in existing Ethernet cables to transmit both power and data to your APs.

Quick, Simple Installation

1.Detach and remove the faceplate of the junction box.
2.Plug an Ethernet cable in to the port.
3.Secure the Access Point to the wall using the provided screws.
4.Press the faceplate back into position.

Omada SDN-Smarter Cloud Solution for Business Networking

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Hassle-Free Centralized Cloud Management:

100% centralized cloud management of whole network from different sites-all controlled from a single interface anywhere, anytime.

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: EAP230-WALL
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Line: Omada
Product Model: EAP230-WALL
Product Name: Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11b/g/n/ac
Frequency Band:

• 2.40 GHz
• 5 GHz

Total Number of Antennas: 2
Number of Internal Antennas: 2
Wireless Transmission Speed: 1.17 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Data Encryption: Yes
Encryption Standard:

• 64-bit WEP
• 128-bit WEP
• 152-bit WEP
• WPA
• WPA2-ENT
• WPA-PSK
• WPA2-PSK

Interfaces/Ports
Ethernet Technology: Gigabit Ethernet
Number of Network (RJ-45) Ports: 2
Power Description
Power Consumption: 7 W
Physical Characteristics
Form Factor:

• Wall Mountable
• Wall Plate

Height: 86.8 mm
Width: 86.8 mm
Depth: 30.2 mm
