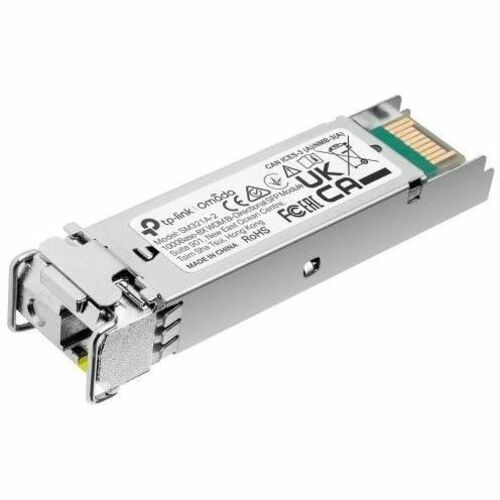

TP-Link Omada 1000Base-BX WDM Bi-Directional SFP Module

Marketing Information

What This Product Does

TP-Link´s SM321A-2 (TL-SM321A-2) is developed in accordance with the Small Form Pluggable Multi-Source Agreement (SFP-MSA). As a WDM Bi-Directional optical transceiver, SM321A-2 (TL-SM321A-2) uses an integrated LC Bi-Directional optical interface connector and the data link is up to 2 km in 9/125 µm SMF (Single-Mode Fiber).

Also, SM321A-2 (TL-SM321A-2) incorporates the Digital Diagnostic Monitoring (DDM) feature which is compatible with SFF-8472. DDM supports real-time monitoring of the transceiver, and shows parameters including the transceiver current which transmits/receives optical power and operating temperature.

TP-Link's SM321A-2 (TL-SM321A-2) is used for short-and medium... distance fiber network in practice, and it provides fast and stable gigabit fiber connection for switches, routers, servers, etc.

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: SM321A-2
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Line: Omada
Product Model: SM321A-2
Product Name: Omada 1000Base-BX WDM Bi-Directional SFP Module
Product Type: SFP (mini-GBIC)
Technical Information
Application/Usage:

• Data Networking
• Optical Network

Features: Digital Diagnostics Monitoring Interface (DDMI)
Interfaces/Ports
Total Number of Ports: 1
Connector Type: LC
Interfaces/Ports Details: 1 x LC 1000Base-BX Simplex Network
Media & Performance
Media Type Supported: Optical Fiber
Fiber Mode Supported: Single-mode
Ethernet Technology: Gigabit Ethernet
Network Technology:

• 1000Base-BX
• 1000Base-BiDi

Maximum Distance Supported: 2 km
Maximum Data Transfer Rate: 1.25 Gbit/s
Environmental Conditions
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: 70°C
Physical Characteristics
Form Factor: Hot-swappable
Height: 12.7 mm
Width: 55.9 mm
Depth: 15.2 mm
Miscellaneous
Compatibility:

MSA Compliant
