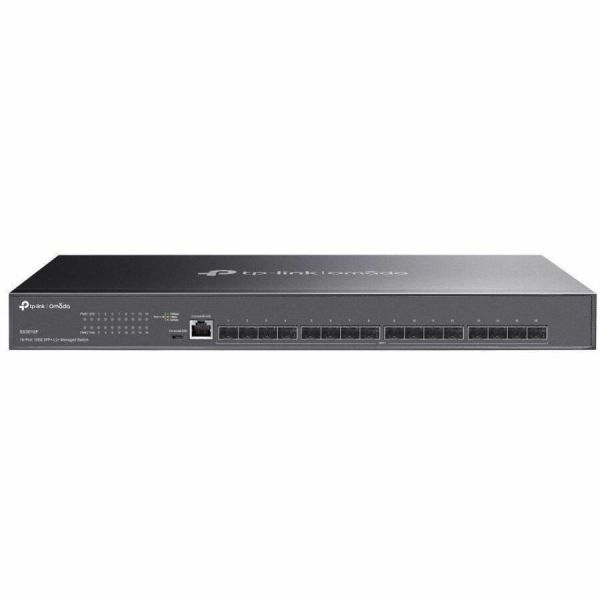

TP-Link Omada 16-Port 10GE SFP+ L2+ Managed Switch

Marketing Information

• Ideal for Use in Aggregation Layer
• 16 × 10 Gbps SFP+ Slots
• 1+1 Redundant Power Supply
• Zero-Touch Provisioning
• Centralized Management
• Omada App
• Ethernet Ring Protection Switching
• ...t">Static Routing

Easily Build a Whole 10G Multi-gigabit Network | 10G Router

Ensures the fast way

Full 10G Fiber Switch

Lightning-fast aggregation switching

Switch with 10G Uplink

PoE Switch with 10G Uplink

Wi-Fi 7/6 APs with 10G/2.5G Ports

Software Defined Networking (SDN) with Cloud Access

Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: SX3016F
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Line: Omada
Product Model: SX3016F
Product Name: Omada 16-Port 10GE SFP+ L2+ Managed Switch
Product Type: Ethernet Switch
Technical Information
Features:

• Fanless
• Intelligent monitoring

Interfaces/Ports
Modular: Yes
Port/Expansion Slot Details: 16 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology: 10 Gigabit Ethernet
Network Technology: 10GBase-X
I/O Expansions
Total Number of Expansion Slots: 16
Expansion Slot Type: SFP+
Number of SFP+ Slots: 16
Network & Communication
Layer Supported: 2
Networking Standards:

• IEEE 802.1Q
• IEEE 802.1p
• IEEE 802.1x
• IEEE 802.3ah
• IEEE 802.1ab

Management & Protocols
Manageable: Yes
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Frequency:

• 50 Hz
• 60 Hz

Power Source:

• AC
• Power Supply

Redundant Power Supply Supported: Yes
Power Consumption: 32.74 W
Physical Characteristics
Product Material: Metal
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 44 mm
Width: 440 mm
Depth: 220 mm
Miscellaneous
Application/Usage: Network
