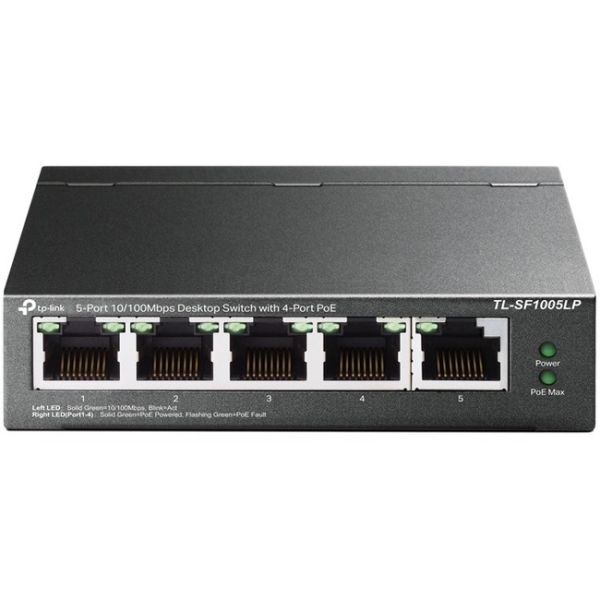

TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

Marketing Information

Professional Fast Ethernet Switch with 4 PoE Ports

Plug and Play, with PoE Transmission for Surveillance up to 250 m

TL-SF1005LP

41 W PoE Budget
Plug and Play
Transmission Distance up to 250 m
One-Click Priority Mode
Intelligent Power Management
Durable Metal Casing

Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications

Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers..., and more.

Plug In
Connect Devices
Enjoy

Ideal for IP Surveillance-Up to 250 m Transmissions

With extend mode, the PoE transmission distance reaches up to 250 m-perfect for IP Camera deployment in large areas.

Priority Video Quality Guaranteed

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1-2 when one-touch Priority Mode is on.

Intelligent Power Management

When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing

The interior components of TL-SF1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1005LP delivers switching performance you can depend on.

Compact Desktop Design
Wall-Mounting
Fanless Design

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: TL-SF1005LP
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Model: TL-SF1005LP
Product Name: 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 5
Port/Expansion Slot Details:

• 4 x Fast Ethernet PoE
• 1 x Fast Ethernet Network

Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-T
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: No
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 41 W
Power Source:

• PoE
• Power Adapter

Power Consumption: 47 W
Physical Characteristics
Form Factor:

• Compact
• Desktop
• Wall Mountable

Height: 25 mm
Width: 100 mm
Depth: 98 mm
Miscellaneous
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
