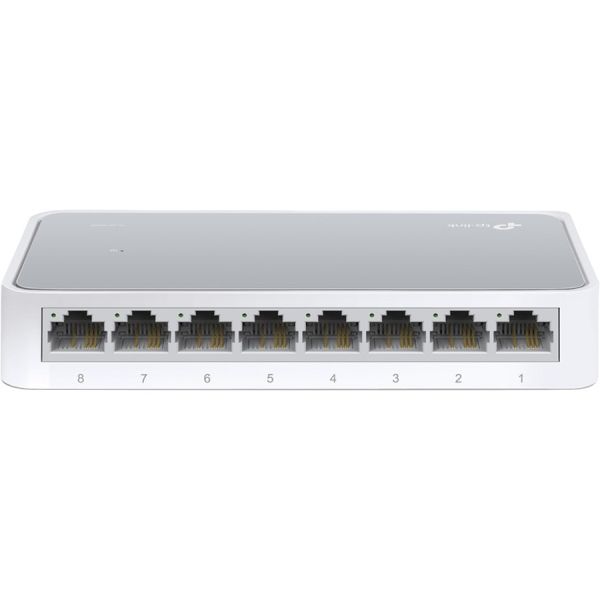

TP-Link TL-SF1008D 8-port Mini Desktop Swtich
Layer Supported | 2 |
---|---|
Product Type | Ethernet Switch |
Power Source | AC Adapter |
Form Factor | Desktop/Wall Mountable |
Brand Name | TP-Link |
Ethernet Technology | Fast Ethernet |
Media Type Supported | Twisted Pair |
Total Number of Network Ports | 8 |
Ethics - Environment | Rating Coming Soon |
Ethics - Animal | Rating Coming Soon |
Ethics - Human | Rating Coming Soon |
Ethics - Integrity | Rating Coming Soon |
Ethics - Durability | Rating Coming Soon |
Description
TL-SF1005D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch.
Specifications
Manufacturer: TP-LINK Technologi...es Co., Ltd
Manufacturer Part Number: TL-SF1008D
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Model: TL-SF1008D
Product Name: TL-SF1008D 8-port Mini Desktop Swtich
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 8
Number of Network (RJ-45) Ports: 8
Port/Expansion Slot Details: 8 x Fast Ethernet Network
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-TX
Network & Communication
Layer Supported: 2
Power Description
Power Source: AC Adapter
Physical Characteristics
Form Factor:
- Desktop
- Wall Mountable
Height: 22.9 mm
Width: 134.6 mm
Depth: 78.7 mm
Miscellaneous
Package Contents:
- TL-SF1008D Fast Ethernet Switch
- Power Adapter
- User Guide
Additional Information:
Features:
- CSMA/CD
- TCP/IP
- Supports IEEE802.3x flow control for Full Duplex mode and back pressure for Half Duplex mode
- Supports MAC address auto-learning and auto-aging
- LED indicators for monitoring power, link, activity
