TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

Marketing Information

Professional 9-Port Unmanaged Switch with 8 PoE+ Ports

Plug and Play, with PoE Transmission for Surveillance up to 250 m

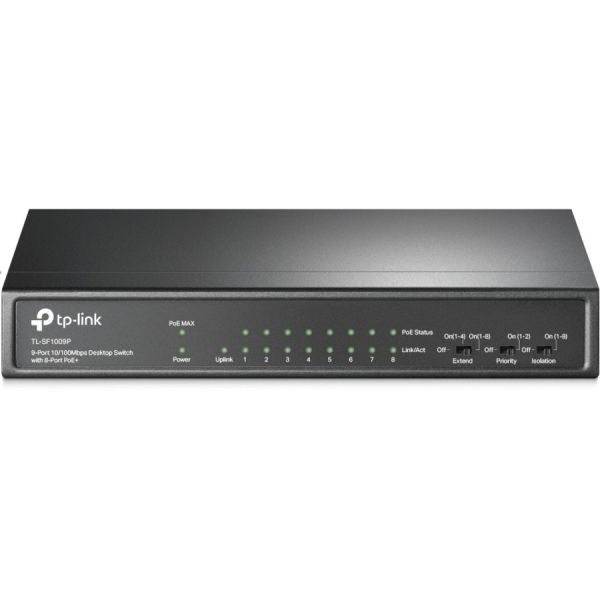

TL-SF1009P

Professional 9-Port Switch with 8-Port PoE+ (65 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Plug and Play, No Configuration Required

Ideal for IP Surveillance-Up to 250 m Transmissions

Wi...th extend mode, the PoE transmission distance reaches up to 250 m-perfect for IP Camera deployment in large areas.

Ideal for IP Surveillance-Higher Performance and Security

Priority Mode and Isolation Mode make surveillance smoother and safer.

Priority Video Quality Guaranteed

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1-2 when one-touch Priority Mode is on.

One-Click Traffic Separation for Ports 1-8

With one click, Isolation Mode easily divides traffic for ports 1-8 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.

Intelligent Power Management

When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing

The interior components of TL-SF1009P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1009P delivers switching performance you can depend on.

More from the Manufacturer

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: TL-SF1009P
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Model: TL-SF1009P
Product Name: 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 9
Uplink Port: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 8 x Fast Ethernet PoE+
• 1 x Fast Ethernet Network

Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-T
Network & Communication
Layer Supported: 2
Networking Standards:

• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3x

Management & Protocols
Manageable: No
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 65 W
Power Source: Power Adapter
Power Consumption: 3.60 W
Physical Characteristics
Product Material: Metal
Form Factor: Desktop
Height: 27 mm
Width: 171 mm
Depth: 98 mm
