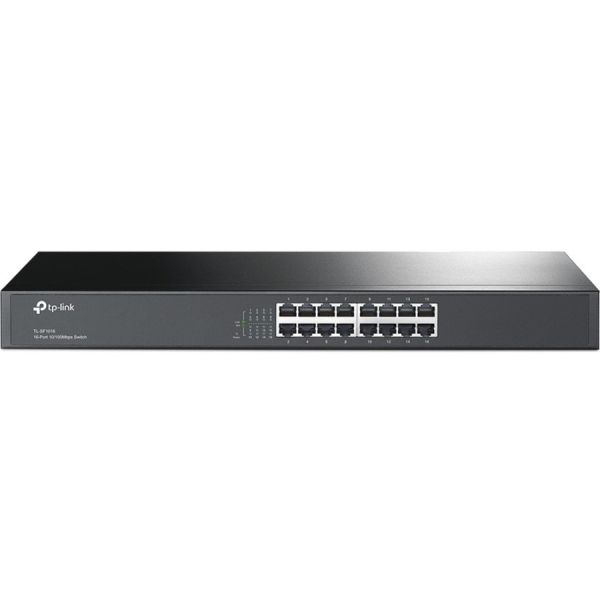

TP-Link 16-Port 10/100Mbps Rackmount Switch

Marketing Information

What This Product Does

The 16-Port Fast Ethernet Switch TL-SF1016 is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. A reliable, easy-to-use switch without the complexity of management, the TL-SF1016 provides 16 10/100Mbps ports. The TL-SF1016 combines ease of use with unsurpassed performance resulting in an exceptional value for any cost-conscious network administrator who wants the best possible solution at the best possible price.

Ease of Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports.... Auto-negotiation on each port senses the link speed of a network device (either 10, 100) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also Rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: TL-SF1016
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Model: TL-SF1016
Product Name: 16-Port 10/100Mbps Rackmount Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 16
Token Ring Port: No
LRE Port: No
Uplink Port: No
Bypass: No
Modular: No
Management Port: No
USB: No
Number of Network (RJ-45) Ports: 16
Port/Expansion Slot Details: 16 x Fast Ethernet Network
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-TX
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: No
Power Description
PoE (RJ-45) Port: No
Power Source: Power Supply
Redundant Power Supply Supported: No
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:

• Rack-mountable
• Desktop

Height: 44 mm
Width: 440 mm
Depth: 180 mm
Miscellaneous
Package Contents:

• TL-SF1016 Ethernet Switch
• Power cord
• User Guide
• Mounting screws and two "L" planks
