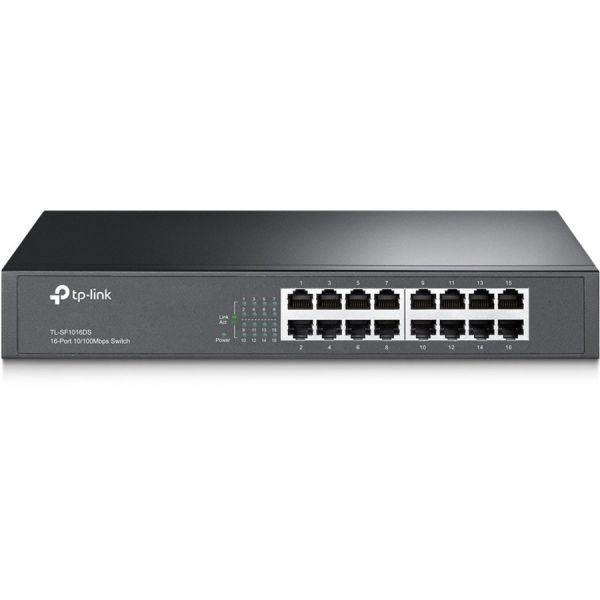

TP-Link 16-Port 10/100Mbps Switch

Marketing Information

What This Product Does

The 16-Port 10/100Mbps Desktop/Rackmount Switch TL-SF1016DS provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save on power consumption and most of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology

This new generation The 16-Port 10/100Mbps Desktop/Rackmount Switch TL-SF1016DS features the latest innovative energy-efficient technologies that can gr...eatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the RoHS, prohibiting the use of certain hazardous materials. Besides, most packaging material can be recycled.

High Performance

The rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1016DS forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016DS work reliably.

Easy to Use

The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100Mbps) and intelligently adjusts for compatibility and optimal performance.

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: TL-SF1016DS
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Model: TL-SF1016DS
Product Name: 16-Port 10/100Mbps Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 16
Token Ring Port: No
LRE Port: No
Bypass: No
Modular: No
USB: No
Stack Port: No
Number of Network (RJ-45) Ports: 16
Port/Expansion Slot Details: 16 x Fast Ethernet Network
Media & Performance
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5e
Ethernet Technology: Fast Ethernet
Network Technology: 10/100Base-TX
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: No
Power Description
PoE (RJ-45) Port: No
Power Source: Power Supply
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:

• Rack-mountable
• Desktop

Height: 43.2 mm
Width: 294.6 mm
Depth: 180.3 mm
Miscellaneous
Package Contents:

• TL-SF1016DS Ethernet Switch
• Power Cord
• User Guide
• Mounting screws and two "L" planks
