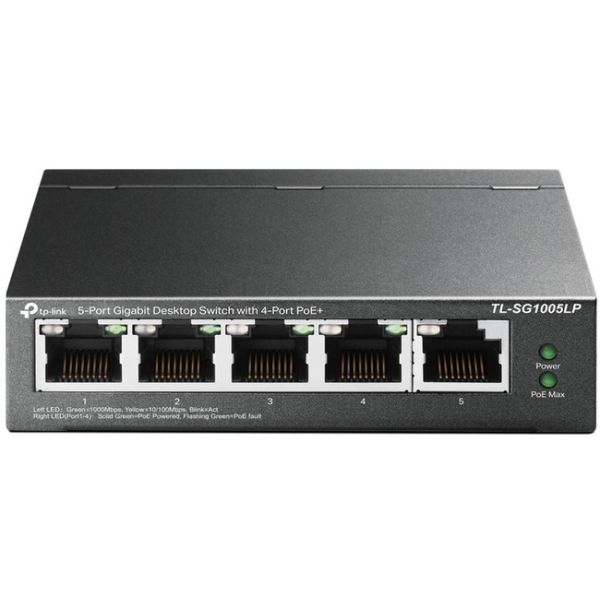

TP-Link 5-Port Gigabit Desktop Switch with 4-Port PoE+

Marketing Information

Professional 5-Port Gigabit Switch with 4 PoE+ Ports

Plug and Play, with PoE power supply which meets the needs of diverse devices.

TL-SG1005LP

• 40 W PoE Budget
• Plug and Play
• Multicast Optimization
• QoS for Traffic
• Prioritization
• Intelligent Power
• Management
• Durable Metal Casing

Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It i...s fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Plug and Play, No Configuration Required

Intelligent Power Management

When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Advanced Functions for Higher Performance

Qos

For Fluent Online Experience

Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.

IGMP Snooping

Traffic Optimization for IPTV

IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

Durable Metal Casing

The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: TL-SG1005LP
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Model: TL-SG1005LP
Product Name: 5-Port Gigabit Desktop Switch with 4-Port PoE+
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 5
Port/Expansion Slot Details:

• 4 x Gigabit Ethernet PoE+
• 1 x Gigabit Ethernet Network

Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 40 W
Power Source:

• PoE+
• Power Adapter

Power Consumption: 47.50 W
Physical Characteristics
Form Factor: Desktop
Height: 25.4 mm
Width: 99.1 mm
Depth: 99.1 mm
Miscellaneous
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
