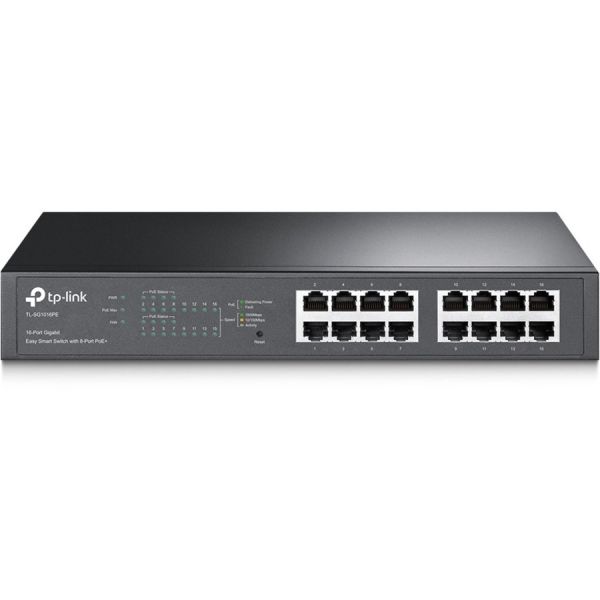

TP-Link 16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+

Marketing Information

What This Product Does

The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 124W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.

How This Product Works

8 ports of TL-SG1016PE support Power over Ethernet Plus (PoE+) standard which can automatically detec...t and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.

Overload Arrangement

TL-SG1016PE has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices' power consumption is greater than or equal to 124W, a priority will be arranged among the 16 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.

Port Priority Function

Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port F > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power of Port 7 in response to the power exceeding the 120W limit., This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied to Port 7 as it has the lowest designated priority among the ports in use.

Easy To Use

TL-SG1016PE is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-LINK TL-SG1016PE 16-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.

More from the Manufacturer

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: TLSG1016PE
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Model: TL-SG1016PE
Product Name: 16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 16
Uplink Port: No
Modular: No
Stack Port: No
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 8 x Gigabit Ethernet PoE+
• 8 x Gigabit Ethernet Network

Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Network & Communication
Layer Supported: 2
Networking Standards:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3x
• IEEE 802.1Q
• IEEE 802.1p

Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 110 W
Power Source: Power Supply
Redundant Power Supply Supported: No
Power Consumption: 14.70 W
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:

• Rack-mountable
• Desktop

Height: 43.2 mm
Width: 294.6 mm
Depth: 180.3 mm
