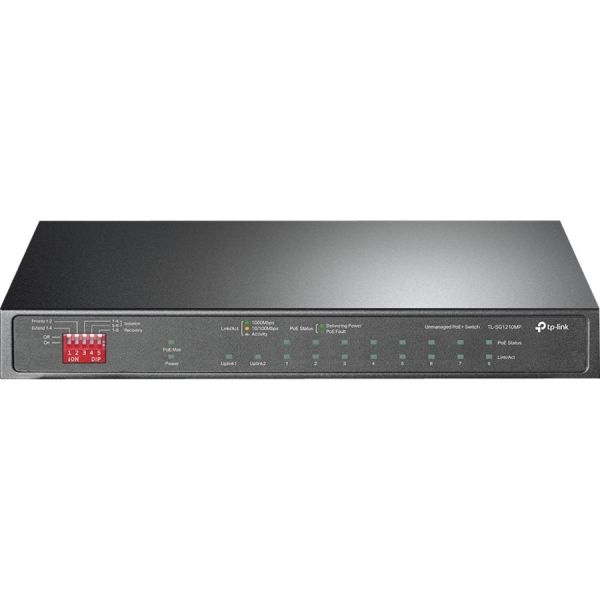

TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+

Marketing Information
Highlights

- With eight PoE+ ports, transfers data and power on one single cable
- Working with IEEE 802.3af/at compliant PDs, expands your network
- Supports PoE power up to 30 W for each PoE port
- Supports PoE power up to 123 W for all PoE ports
- Up to 250 m data and power transmission under Extend Mode specially designed for surveillance system
- Priority Mode ensures high priority of port 1-2 to guarantee the quality of sensitive application
- Isolation Mode allows one-click client traffic separation for higher security and performance
- With PoE Auto Recovery, the switch will automatically reboot your dropped or unresponsive PoE-powered devices connected to port 1-8
- Re...quires no configuration and installation
- Fanless Design
- Supports desktop and wall mountable installation methods

Overview

TL-SG1210MP is an unmanaged switch with 10 Gigabit ports that requires no configuration and provides 8 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Power Over Ethernet

8 RJ45 ports (port 1 to port 8) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).

Overload Arrangement

TL-SG1210MP has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is ≥ 123 W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

Intelligent Power Management

Priority (port 1 > port 2 > port 3>... > port 8): This function will help protect the system when the system power is overloaded. For example, port 1, 2, 3 and 5 is using 25 W respectively (maximum power per port is 30 W); the system power is 100 W in total. If there is an additional PD inserted to port 4 with 30 W, and then the system will cut off the power of port 5 because of the overloaded power, this means port 1, 2, 3 will use 25 W respectively and port 4 will use 30 W, no power will be supplied to port 5.
Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: TL-SG1210MP
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Model: TL-SG1210MP
Product Name: 10-Port Gigabit Desktop Switch with 8-Port PoE+
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 10
Modular: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 8 x Gigabit Ethernet PoE+
• 1 x Gigabit Ethernet Network
• 1 x Gigabit Ethernet TP/SFP Combo

Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Ethernet Technology: Gigabit Ethernet
Network Technology:

• 10/100/1000Base-T
• 1000Base-X

I/O Expansions
Total Number of Expansion Slots: 1.0
Expansion Slot Type: SFP (mini-GBIC)
Shared SFP Slot: Yes
Number of SFP Slots: 1
Network & Communication
Layer Supported: 2
Networking Standards:

• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3z

Management & Protocols
Manageable: No
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 123 W
Power Source: Power Adapter
Power Consumption: 7.93 W
Physical Characteristics
Product Material: Metal
Form Factor:

• Desktop
• Wall Mountable

Height: 25.4 mm
Width: 208.3 mm
Depth: 124.5 mm
