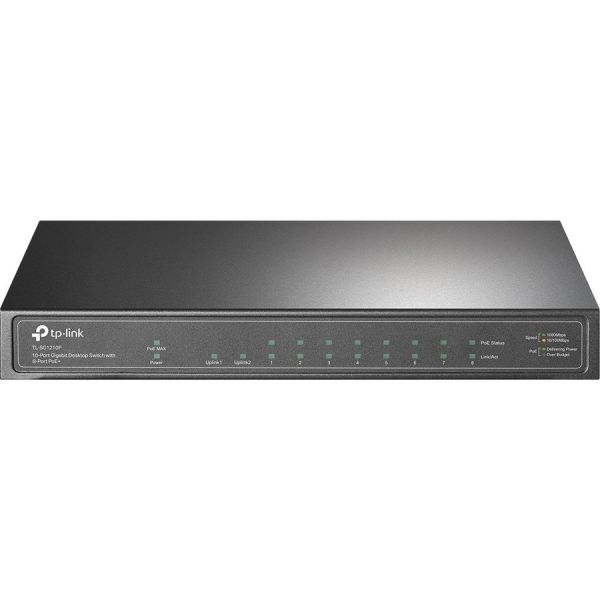

TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+

Marketing Information

PoE Switches for Your Ultra Convenience

10-Port Gigabit Desktop Switch with 8-Port PoE+
TL-SG1210P

Surveillance

Work with IP Cameras

Conference Call

Work with IP Phones

Wi-Fi Coverage

Work with Omada EAPs

Easy to Use

Power over Ethernet

Port 1-8 of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).

Intelligent Power Management

When total power consumption excels 63W, the intelligent power management will cut the lower priority port power off to ensure the... high priority port's power supply and protect the device from power overload operation.

Advanced Functions for Higher Performance

Qos

For Fluent Online Experience

Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.

IGMP Snooping

IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

Sturdy Metal Casing

Sturdy, compact metal casing, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

More from the Manufacturer

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: TL-SG1210P
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Model: TL-SG1210P
Product Name: 10-Port Gigabit Desktop Switch with 8-Port PoE+
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 10
Uplink Port: Yes
Modular: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 8 x Gigabit Ethernet PoE+
• 1 x Gigabit Ethernet Network
• 1 x Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology: Gigabit Ethernet
Network Technology:

• 1000Base-T
• 1000Base-X

I/O Expansions
Total Number of Expansion Slots: 1.0
Expansion Slot Type: SFP (mini-GBIC)
Shared SFP Slot: No
Number of SFP Slots: 1
Network & Communication
Layer Supported: 2
Networking Standards:

• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3x
• IEEE 802.1p

Management & Protocols
Manageable: No
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 63 W
Power Source: Power Adapter
Power Consumption: 7.11 W
Physical Characteristics
Form Factor:

• Desktop
• Wall Mountable

Height: 26 mm
Width: 209 mm
Depth: 126 mm
Miscellaneous
Package Contents:

• 10-Port Gigabit Desktop Switch with 8-Port PoE+
• Power Adapter
• Installation Guide

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
