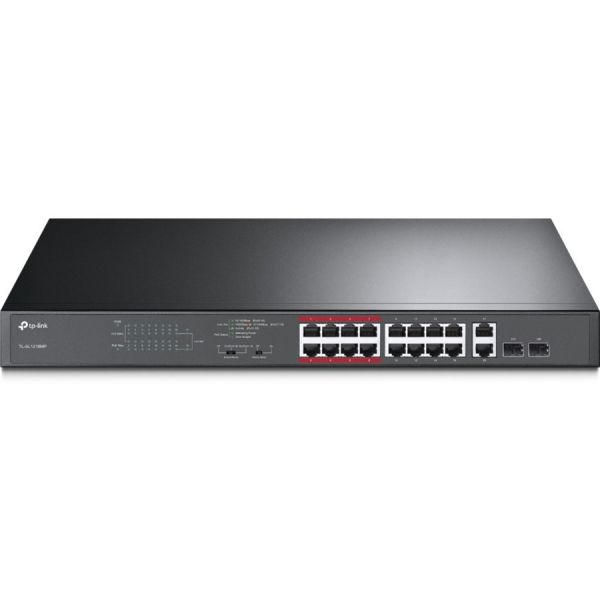

TP-Link 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch

Marketing Information

Easy to Use PoE Switch with Innovative Design

Up To 250m Data and Power Transmission for Surveillance

High PoE Power Budget

TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

Up to 250m Transmission for Surveillance

TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m which makes it perfect for IP Camera deployment in large... area coverage.

Video Quality Guaranteed

Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.

More from the Manufacturer

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: TL-SL1218MP
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Model: TL-SL1218MP
Product Name: 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 16
Modular: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 16 x Fast Ethernet PoE+
• 2 x Gigabit Ethernet Network
• 2 x Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology:

• Fast Ethernet
• Gigabit Ethernet

Network Technology:

• 10/100Base-T
• 10/100/1000Base-T
• 1000Base-X

I/O Expansions
Total Number of Expansion Slots: 2.0
Expansion Slot Type: SFP (mini-GBIC)
Shared SFP Slot: Yes
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Networking Standards:

• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3x

Management & Protocols
Manageable: No
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 250 W
Frequency:

• 50 Hz
• 60 Hz

Power Source: Power Supply
Power Consumption: 15 W
Physical Characteristics
Product Material: Metal
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 44 mm
Width: 440 mm
Depth: 180 mm
Miscellaneous
Package Contents:

• 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch
• Power Cable
• Installation Guide

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
