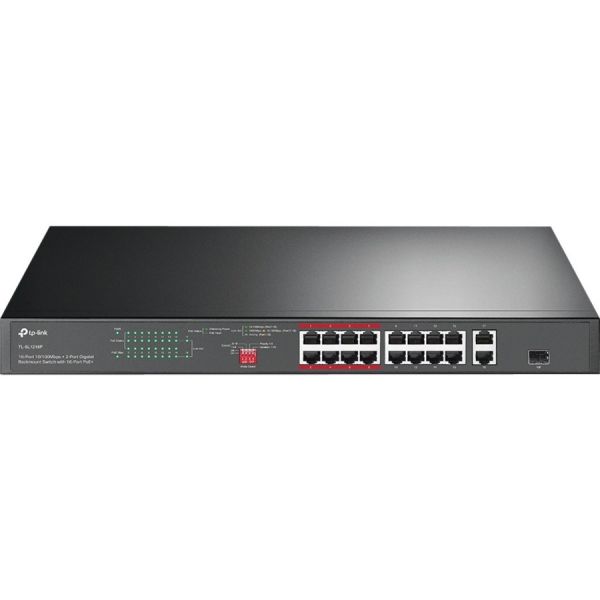

TP-Link 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+

Marketing Information

Professional 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+

Plug and Play, with PoE Transmission for Surveillance up to 250 m

TL-SL1218P

Dedicated 16-Port PoE+ Switch (150 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 150 W PoE power budget for the 16× PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

Ideal for IP Surveillance-Up to 250 m Transmission

With extend mode, the PoE transmission distance ...reaches up to 250 m-perfect for IP Camera deployment in large areas.

Ideal for IP Surveillance -Higher Performance and Security

Priority Mode and Isolation Mode make surveillance smoother and safer.

Priority Video Quality Guaranteed

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1-8 when one-touch Priority Mode is on.

One-Click Traffic Separation for Ports 1-16

With one click, Isolation Mode easily divides traffic for ports 1-16 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.

Smooth HD Video Monitoring

2× gigabit RJ45 ports and 1× combo gigabit SFP slot ensure smooth streaming even when 16× HD IP cameras work simultaneously.

Plug and Play

Intelligent Power Management to Prevent Power Overload

When your total power consumption exceeds 150 W, Intelligent Power Management automatically cuts lower priority ports power to ensure high-priority ports power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

Wide Operating Temperature with Good Heat Dissipation

Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0-50℃) with reliability.

Multiple Application Scenarios

The TL-SL1218P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.

Surveillance

Works with IP Cameras

Conference

Call Works with IP Phones

Wi-Fi Coverage

Works with Omada EAPs

Wired Connections

Works with PCs and Printers

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: TL-SL1218P
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Model: TL-SL1218P
Product Name: 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 16
Modular: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 16 x Fast Ethernet PoE+
• 2 x Gigabit Ethernet Network
• 1 x Gigabit Ethernet TP/SFP Combo

Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Ethernet Technology:

• Fast Ethernet
• Gigabit Ethernet

Network Technology:

• 10/100Base-T
• 10/100/1000Base-T
• 1000Base-X

I/O Expansions
Total Number of Expansion Slots: 1.0
Expansion Slot Type: SFP (mini-GBIC)
Shared SFP Slot: Yes
Number of SFP Slots: 1
Network & Communication
Layer Supported: 2
Networking Standards:

• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3x

Management & Protocols
Manageable: No
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 150 W
Power Source: Power Supply
Power Consumption: 12.70 W
Physical Characteristics
Product Material: Metal
Form Factor: Rack-mountable
Height: 43.2 mm
Width: 439.4 mm
Depth: 180.3 mm
Miscellaneous
Package Contents:

• 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+
• Power Cable
• Installation Guide
• 2 x Mounting Brackets and the Fittings

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: Lifetime
