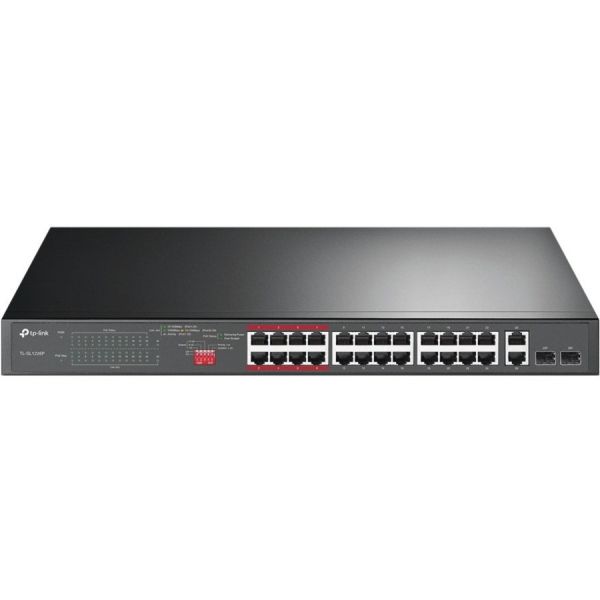

TP-Link 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch

Marketing Information

Dedicated 24-Port PoE+ Switch for Wide Range of Applications with 250 W PoE Budget

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24× PoE ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

Dedicated Design for IP Surveillance-Up to 250 m Transmission

With extend mode, the PoE transmission distance reaches up to 250 m-perfect for IP Camera deployment in large areas.

Dedicated Design for IP Surveillance-Higher Performance and Security

Priority ...Mode and Isolation Mode make surveillance smoother and safer.

Priority Video Quality Guaranteed

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1-8 when one-touch Priority Mode is on.

One-Click Traffic Separation for Ports 1-24

With one click, Isolation Mode easily divides traffic for ports 1-24 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.

Smooth HD Video Monitoring

2× gigabit RJ45 ports and 2× combo gigabit SFP ports ensure smooth streaming even when 24× HD IP cameras work simultaneously.

Plug and Play

Intelligent Power Management to Prevent Power Overload

When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports' power to ensure high-priority ports' power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

Wide Operating Temperature with Good Heat Dissipation

Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0-50℃) with reliability.

More from the Manufacturer

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: TL-SL1226P
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Model: TL-SL1226P
Product Name: 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 26
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 24 x Fast Ethernet PoE+
• 2 x Gigabit Ethernet TP/SFP Combo

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology:

• Fast Ethernet
• Gigabit Ethernet

Network Technology:

• 10/100Base-T
• 1000Base-T
• 1000Base-X

I/O Expansions
Total Number of Expansion Slots: 2.0
Expansion Slot Type: SFP (mini-GBIC)
Shared SFP Slot: Yes
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: No
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 250 W
Frequency:

• 50 Hz
• 60 Hz

Power Source: Power Supply
Power Consumption: 18.32 W
Physical Characteristics
Product Material: Metal
Height: 43.2 mm
Width: 439.4 mm
Depth: 180.3 mm
Miscellaneous
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
