TP-Link 300Mbps Wireless N Access Point

Marketing Information

What This Product Does

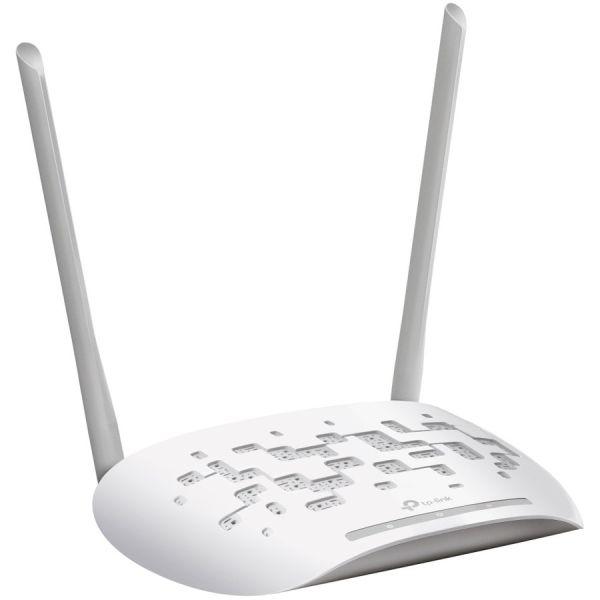

The TP-LINK Wireless N Access Point TL-WA801N is designed to establish or expand a scalable high-speed wireless N network or to connect multiple Ethernet-enabled devices such as game consoles, digital media adapters, printers, or network-attached storage devices to a wireless network. The AP supports a host of
different functions that makes your wireless networking experience more flexible than ever before. Now, you can enjoy a better Internet experience when downloading, gaming, video streaming or any other applications that you may wish to use.

Wireless N - Speed & Range

Adopting IEEE 802.11n advanced MIMO (Multi Input Multi Output) technology, it simultaneously work...s through two antennas to Tx and Rx to overcome the interference and signal degradation when traveling long distances or through physical barriers in a small office or a large apartment, resulting in an incredible improvement in the wireless performance, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!

Multiple Operating Modes - Easy to Build WLAN

Supports multiple operation modes (Access Point, Multi-SSID, Client, Range Extender) to enable various wireless applications to give users a more dynamic and comprehensive experience when using their APs. Multiple operating modes also help you easily build wireless network for hard-to-wire locations or eliminating wireless dead zone.

Passive PoE Supported - More Flexible Deployment

The TL-WA801N is able to be powered using an Ethernet cable to simultaneously send data and electricity to wherever your AP may be located even up to 100 feet away. This feature multiplies your options allowing you to place the AP in a position that is most convenient to get the best signal possible, such as on the wall or on the ceiling of your office.

More from the Manufacturer

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: TL-WA801N
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Model: TL-WA801N
Product Name: 300Mbps Wireless N Access Point
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11n
Frequency Band: 2.40 GHz
Total Number of Antennas: 2
Number of External Antennas: 2
Wireless Transmission Speed: 300 Mbit/s
MIMO Technology: Yes
Data Encryption: Yes
Encryption Standard:

• WEP
• WPA
• WPA2-PSK
• WPA2

Interfaces/Ports
Ethernet Technology: Fast Ethernet
Number of Network (RJ-45) Ports: 1
PoE PD Port: Yes
Physical Characteristics
Form Factor:

• Desktop
• Ceiling Mountable
• Wall Mountable

Antenna Form Factor: External
Height: 35.6 mm
Width: 180.3 mm
Depth: 129.5 mm
Miscellaneous
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
