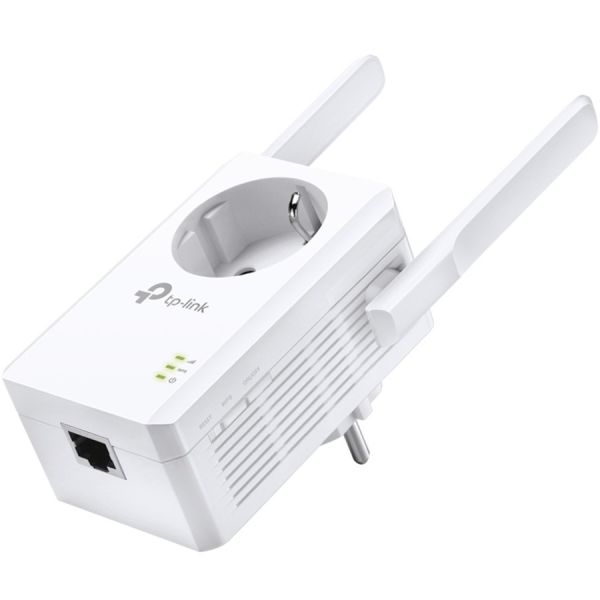

TP-Link 300Mbps Wi-Fi Range Extender with AC Passthrough

Marketing Information

One Button Super Wi-Fi Range Extension

The TL-WA860RE wall-mounted is designed to conveniently extend the coverage and improve the signal strength of your wireless network. With 300Mbps wireless N speeds, TL-WA860RE turns your 'dead zones' into connected zones, helping you keep mobile devices, media players and computers connected to Wi-Fi with a reliable connection.

Flexible Placement & Extra Power Socket

The TL-WA860RE's miniature size and wall-mounted design make it easy to deploy and move flexibly. Once connected with an existing router, you can simply unplug and plug the Range Extender back in anywhere without the need to configure it again. Moreover, its integrated power socket ensures that no powe...r outlet goes to waste.

Plug and Play

Just plug and play. That's all you need to do to extend your wireless network. With no new wires or cables, within range of their existing wireless network, users can easily extend wireless coverage at a push of the WPS button on their router followed by the Range Extender button on the TL-WA860RE.

Superior Range with External Antennas

With 2 external antennas combined with higher quality antenna technology, you can experience excellent WiFi coverage and reliability no matter where you connect in your home.

Ethernet Bridge | Turn wired devices into wireless one

The TL-WA860RE's single Ethernet port allows the Extender to function as a wireless adapter to connect wired devices like Blu-ray® players, gaming consoles, DVRs and Internet TVs. At the same time, the device can also share the wireless network.

Smooth Streaming

The TL-WA860RE provides fast connectivity for lag-free HD/3D video streaming, online gaming and internet calling with 300Mbps wireless N speeds.

Smart Signal Indicator

Smart signal lights show the strength of signal that TL-WA860RE receives from the existing router, which can help to find the best location for optimal Wi-Fi coverage.

• 300Mbps wireless data rates ideal for bandwidth-intensive tasks
• 2 external antennas provide excellent WiFi coverage and reliability
• Integrated power socket making sure that no power outlet is going to waste
• Ethernet port allows the Extender connect wired devices
• Easily expand wireless coverage at a push of the Range Extender button
• Compatible with other 802.11n/g/b products

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: TL-WA860RE
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Model: TL-WA860RE
Product Name: 300Mbps Wi-Fi Range Extender with AC Passthrough
Product Type: Wireless Range Extender
Technical Information
Wireless LAN Standard: IEEE 802.11b/g/n
Network Band: Single Band
Frequency Band: 2.40 GHz
ISM Band: Yes
UNII Band: No
ISM Maximum Frequency: 2.40 GHz
Total Number of Antennas: 2
Number of External Antennas: 2
Wireless Transmission Speed: 300 Mbit/s
Data Encryption: Yes
Encryption Standard:

• WPA-PSK
• WPA2-PSK
• 64-bit WEP
• 128-bit WEP
• 152-bit WEP

Interfaces/Ports
Ethernet Technology: Fast Ethernet
Number of Network (RJ-45) Ports: 1
Power Description
Power Consumption: 3 W
Physical Characteristics
Form Factor: Wall Mountable
Height: 75.2 mm
Width: 11 mm
Depth: 65.8 mm
Miscellaneous
Certifications & Standards: IEEE Standards:

• 802.11n
• 802.11g
• 802.11b
