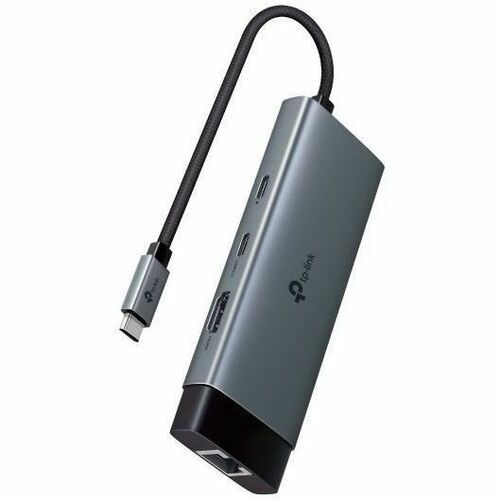

TP-Link UH6120C USB Type-C 6 in 1 Hub

Marketing Information

4K HDMI | Ultra High-Definition Media Display

Connect to an external monitor via the 4K HDMI port for a stunning ultra high-definition experience.

Gigabit RJ45 | Stable Gigabit Connection

This compact gadget provides stable Gigabit Ethernet connectivity for your ultrabook, Chromebook, laptop, or desktop.

PD 100W | Powerful 100W Fast Charging

Plug the charging cable into UH6120C and continuously deliver up to 100W of power to your PC while transferring files or streaming media.

USB 3.0 | 5 Gbps SuperSpeed Data Transfer

UH6120C adds three USB 3.0 ports to your device, enabling simultaneous use of multiple USB devices.

C...onsiderate Design

The self-storing design protects the port and enhances portability. The aluminum alloy case and braided cable bolster UH6120C's durability, ensuring a superior user experience.

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: UH6120C
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Model: UH6120C
Product Name: UH6120C USB Type-C 6 in 1 Hub
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Charging Capability: Yes
Device Supported:

• Notebook
• Tablet
• Smartphone
• Gaming Console
• Desktop PC

Cable Length: 18 cm
Features:

• Plug and Play
• Power Delivery Pass-through
• Compact

Number of Displays Supported: 1
Screen Mode Supported:

• 4K @ 60Hz
• 4K

Supported Resolutions: 3840 x 2160
Maximum Data Transfer Rate: 640 MB/s
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: USB Type C
Total Number of USB Ports: 3
Number of USB 3.0 Ports: 3
Number of USB Type-A Ports: 2
Number of USB Type-C Ports: 1
USB Type-A: Yes
USB Type-C: Yes
USB Type-C Detail: 1 x USB Type-C 5Gbps
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
Number of HDMI Outputs: 1
HDMI: Yes
USB Power Delivery: 100W
Software
Operating System Supported:

• Mac OS X 10.9 Mavericks
• Windows 7
• Linux
• iPadOS
• iOS
• Android
• ChromeOS
• Windows 11
• Windows 10
• Windows 8.1
• Mac OS X 10.11.6 El Capitan
• Nintendo OS

Physical Characteristics
Height: 14.3 mm
Width: 118.2 mm
Depth: 43 mm
Miscellaneous
Package Contents:

• UH6120C USB Type-C 6 in 1 Hub
• Quick Installation Guide

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
