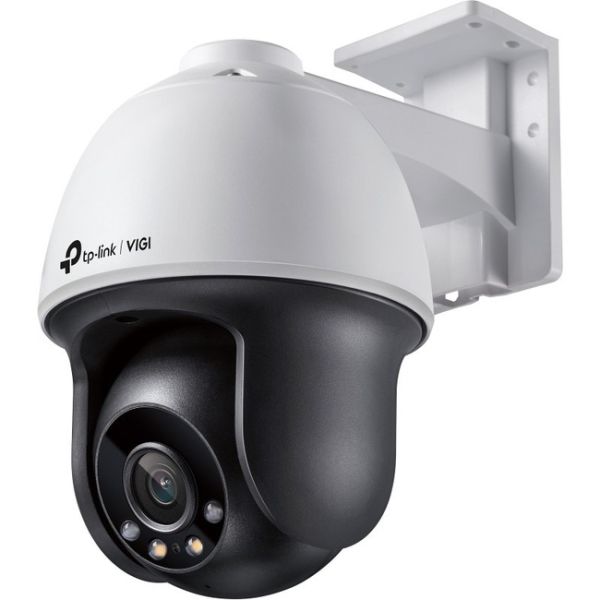

TP-Link VIGI 4MP Outdoor Full-Color Pan Tilt Network Camera

Marketing Information

Powerful Pan Tilt

Cover every corner flexibly with VIGI's Pan Tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve the security within your property.

Outdoor PoE Connection, Simple Wiring

Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.

Clarity and Colors, All in One

Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached su...pplemental lights.

We keep an eye on your business.Smart Detection

Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.

Motion Detection

Get instant notifications when your camera detects motion.

Area Intrusion

Set customized activity zones around key areas for more focused monitoring.

Line-Crossing

Set a boundary and receive an alert anytime a person crosses it from either or both directions.

Camera Tampering

Receive alerts when someone obstructs the camera.

Active Defense

Warn potential intruders instantly with sound and light when abnormal events are detected.

Every Event is Under Your Control.

VIGI camera intelligently detects activities, informs you instantly, and responds automatically by smart detection and two-way audio.

Never miss a detail.SmartVid-Smart Video Enhancement

Smart IR

Keeps objects from being under-rendered when far away or overexposed when close to the camera at night.

Wide Dynamic Range

Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.

3D DNR

Removes abnormal pixelation to provide clearer video and eliminate distortion.

More compression. More savings. Same quality.

Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Flexible Management and Storage

Take full control over your security via three management methods, VIGI NVR, App, and Security Manager. Local storage is available for each method, as well as onboard storage with an SD card slot.

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: VIGI C540(4MM)
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Line: VIGI
Product Model: C540
Product Name: VIGI 4MP Outdoor Full-Color Pan Tilt Network Camera
Product Type: Network Camera
Technical Information
HD Recording: Yes
Night Vision: Yes
Night Vision Distance: 30 m
Night Vision Type: Infrared
Display & Graphics
Image Sensor Type: CMOS
Colour Supported: Colour
Field of View: Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
Effective Camera Resolution: 4 Megapixel
Video
Video Formats:

• H.265+
• H.265
• H.264+
• H.264

Maximum Video Resolution: 2560 x 1440
Maximum Frame Rate: 30 fps
Lens
Lens Type: Fixed
Maximum Focal Length: 4 mm
Lens Included: Yes
Lens Mount Type: M12-mount
Maximum Aperture: f/1.6
Network & Communication
Connectivity Technology: Wired
Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Input Voltage: 12 V DC
Power Source Type:

• DC
• PoE

Physical Characteristics
Mount Type:

• Ceiling Mount
• Wall Mount
• Pole Mount

Form Factor: Dome
Durability: Water Proof
Color Family: White
Product Color: White
Height: 120 mm
Width: 172 mm
Depth: 198 mm
Weight (Approximate): 195 g
Environmental Conditions
Minimum Operating Temperature: -301°C
Maximum Operating Temperature: 60°C
Miscellaneous
Features:

• Human Detection
• Motion Detection
• Cross Line Detection
• Tamper Detection
• SD Card Local Storage
• Digital Wide Dynamic Range (D-WDR)
• 3D Digital Noise Reduction
• Password Protection
• White Balance
• Back Light Compensation (BLC)

Indoor/Outdoor: Outdoor
Package Contents:

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories (Screws, Drywall Anchors, Hex Key)

Ingress Protection Rating: IP66
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
