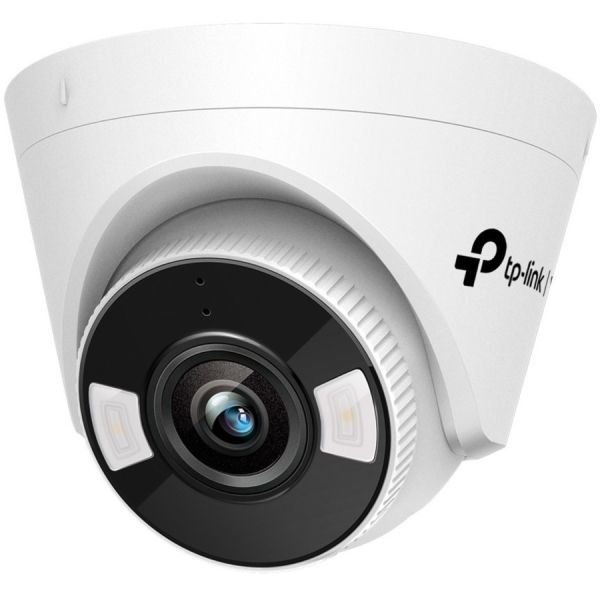

TP-Link VIGI 4MP Full-Color Wi-Fi Turret Network Camera

Marketing Information
Smart Detection

Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.

Motion Detection

Get instant notifications when your camera detects motion.

Human Detection

Smarter security alerts focus on human movement instead of flying insects, small animals and leaves.

Line-Crossing

Set a boundary and receive an alert anytime a person crosses it from either or both directions.

Area Intrusion

Set customized activity zones around key areas for more focused monitoring.

Camera Tampering

Receive alerts when someone obstructs the camera.

SmartVid ...| Smart IR

Keeps objects from being under-rendered when far away or overexposed when close to camera at night

Wide Dynamic Range

Removes abnormal pixelation to provide clearer video and eliminate distortion.

3D DNR

Removes abnormal pixelation to provide clearer video and eliminate distortion.

VIGI Surveillance Solution

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business that you've worked hard to build-whenever, wherever.

Outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Flexible Installation

Easily route your camera's cable into a dropped ceiling or avoid drilling by slotting it through the camera's side outlet.

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: VIGIC440W4MM
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Line: VIGI
Product Model: VIGI C440-W
Product Name: VIGI 4MP Full-Color Wi-Fi Turret Network Camera
Product Type: Network Camera
Technical Information
HD Recording: Yes
Night Vision: Yes
Night Vision Distance: 30 m
Night Vision Type: Infrared/Color
Display & Graphics
Image Sensor Type: CMOS
Colour Supported: Colour
Field of View: Horizontal FOV: 79°, vertical FOV: 43°, diagonal FOV: 93°
Effective Camera Resolution: 4 Megapixel
Video
Video Formats:

• H.265+
• H.265
• H.264+
• H.264
• H.264 (MP)
• H.264 HP
• H.265 (MP)

Maximum Video Resolution: 2560 x 1440
Maximum Frame Rate: 30 fps
Lens
Lens Type: Fixed
Maximum Focal Length: 4 mm
Lens Included: Yes
Lens Mount Type: M12-mount
Maximum Aperture: f/1.6
Network & Communication
Connectivity Technology: Wired & Wireless
Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Input Voltage: 12 V DC
Power Source Type:

• DC
• PoE

Physical Characteristics
Form Factor: Turret
Height: 123 mm
Width: 123 mm
Depth: 84 mm
Weight (Approximate): 195 g
Environmental Conditions
Minimum Operating Temperature: -30°C
Maximum Operating Temperature: 60°C
Miscellaneous
Features:

• Password Protection
• HTTPS Encryption
• Mirror
• Privacy Masking
• 3D Digital Noise Reduction
• Wide Dynamic Range
• Back Light Compensation (BLC)
• Cross Line Detection
• Human Detection
• Motion Detection
• Tamper Detection
• Region of Interest
• Built-in Microphone
• Built-in Speaker
• SD Card Local Storage

Package Contents:

• VIGI 4MP Full-Color Wi-Fi Turret Network Camera
• Quick Start Guide
• Screws and Anchors
• Mounting Template
