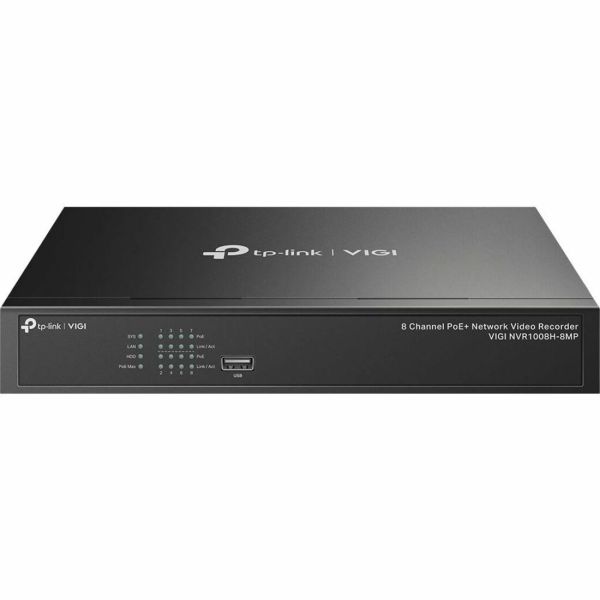

TP-Link VIGI 8 Channel PoE+ Network Video Recorder

Marketing Information

Every angle all on one screen.

4K HDMI Video Output & 16MP Decoding Capacity

Sharp image definition up to 8MP and an 8-channel display ensures you capture every detail, from every angle

Dedicated 8 PoE+ ports (113 W budget) for simplified IP camera deployment ^§ .

Features 8× 10/100Mbps PoE+ ports, the NVR supports up to 30 W on each PoE+ port. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.

Reviewing footage is faster than ever.

8-Channel Simultaneous Playback ^*Repl...ay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.

More Compression. More Savings. More Quality.

Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: VIGINVR1008H8MP
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Line: VIGI
Product Model: VIGI NVR1008H-8MP
Product Name: VIGI 8 Channel PoE+ Network Video Recorder
Product Type: Video Surveillance Station
Technical Information
Total Number of Channels: 8
Connectivity Technology: Wired
Recording Formats: 4K
HD Recording: Yes
System Components: Network Video Recorder
Features:

• Motion Detection
• Vehicle Detection
• Human Detection

Video
Video Formats:

• H.265
• H.265+
• H.264
• H.264+

Maximum Resolution: 8MP
Network & Communication
Ethernet: Yes
Remote Management: Yes
Interfaces/Ports
USB: Yes
USB Standard: USB 2.0
Number of USB Ports: 2
Number of VGA Out: 1
HDMI: Yes
Power Description
Power Consumption: 4.82 W
Power Source: DC Supply
Physical Characteristics
Height: 44 mm
Width: 294 mm
Depth: 180 mm
Weight (Approximate): 1.12 kg
Environmental Conditions
Minimum Operating Temperature: -10°C
Maximum Operating Temperature: 55°C
Miscellaneous
Package Contents:

• VIGI Network Video Recorder
• Power Adapter
• HDD Screws
• Mouse
• Quick Installation Guide
