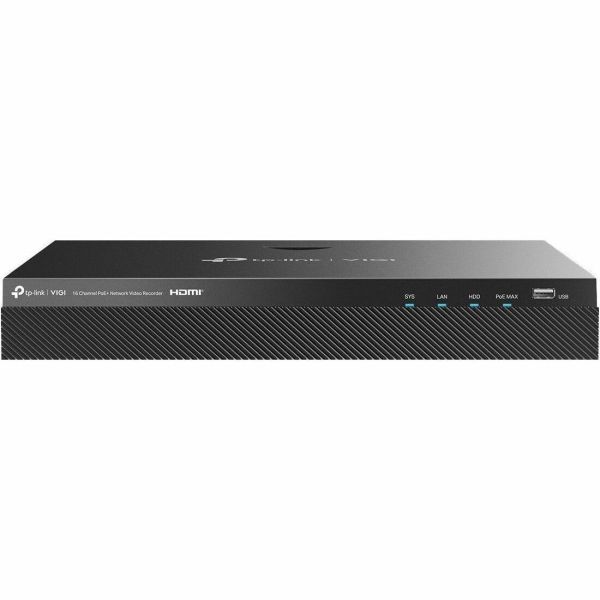

TP-Link VIGI 16 Channel PoE+ Network Video Recorder

Marketing Information

Every Angle All on One Screen

4K HDMI Video Output & 16MP Decoding Capacity

Sharp image definition up to 8MP (4K) ensures you capture every detail. 8-ch@2MP decoding capacity allows you to enjoy more-channels live view and playback at the same time

Dedicated 16 PoE+ Ports for Simplified IP Camera Deployment.

Designed to use a single Ethernet cable for both data and power transmission, this NVR offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.

Reviewing Footage is Faster than Ever

16-Channel Simultaneous Playback^*Replay the feed from up to 16 cameras at the ...same time, increase replay speed, and find events in the video schedule to easily review footage.

More Compression. More Savings. More Quality.

Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

No Need to Check Long Compatibility Lists

ONVIF Ensures Compatibility

Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility

Auto Initialize for Quick Configuration

Just click "Auto Initialize" to set up basic IPC and hard disk parameters, including initialization and recording plans, significantly reducing your configuration time.

Security for Every Hour and Every Day

27/4 Continuous Recording

With the storage capacity of up to 20TB, the NVR supports 24/7 continuous local recording. Customize record schedule or record type to save storage space and quickly search out target footage.

Two-Way Audio

With voice intercom support, scare off any potential thieves or intruders from wherever you are.

Remote Management

Take full control over your security anytime and anywhere on the VIGI app or client.

One system. Full security.

Run your business with peace of mind.

The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you've worked hard to build - whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Specifications
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: VIGI NVR2016H-16MP
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Line: VIGI
Product Model: VIGI NVR2016H-16MP
Product Name: VIGI 16 Channel PoE+ Network Video Recorder
Product Type: Video Surveillance Station
Technical Information
Total Number of Channels: 16
Connectivity Technology: Wired
Recording Formats: 4K
HD Recording: Yes
System Components: Network Video Recorder
Features: Motion Detection
Video
Video Formats:

• H.265
• H.265+
• H.264+
• H.264

Maximum Resolution: 16MP
Maximum Frame Rate: 30 fps
Network & Communication
Ethernet: Yes
Remote Management: Yes
Interfaces/Ports
USB: Yes
USB Standard: USB 2.0
Number of USB Ports: 2
Total Number of Audio In Ports: 1
Total Number of Audio Out Ports: 1
Number of VGA Out: 1
HDMI: Yes
Power Description
Power Consumption: 6.20 W
Power Source: DC Supply
Physical Characteristics
Height: 45 mm
Width: 330 mm
Depth: 285 mm
NVR Weight: 2.10 kg
Environmental Conditions
Minimum Operating Temperature: -10°C
Maximum Operating Temperature: 55°C
