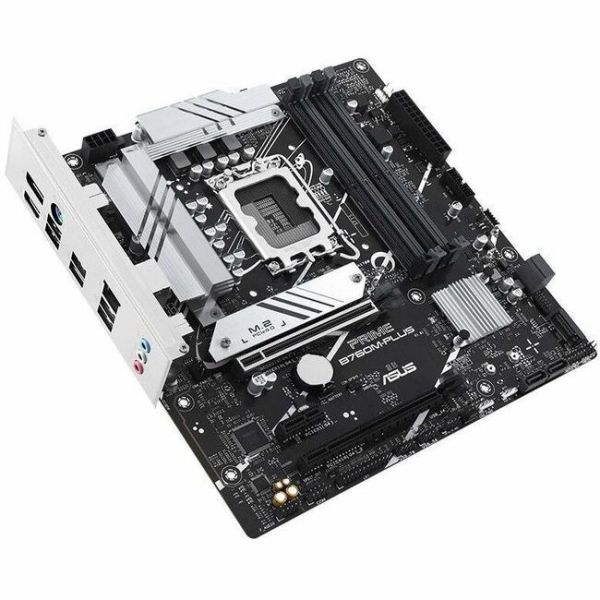

TUF PRIME B760M-PLUS Gaming Desktop Motherboard

Marketing Information

Intel^®B760 (LGA 1700) micro-ATX motherboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, HDMI™, SATA 6 Gbps, rear USB 10Gbps, front USB 5Gbps Type-C^®, Aura Sync

• Ready for Advanced AI PC:Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel^® LGA 1700 Socket: Ready for 14^th, 13^th and 12^th Gen Intel^®processors
...
• Ultrafast Connectivity:PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 10Gbps, front USB 5Gbps Type-C^®
• Comprehensive Cooling:VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
• Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

PRIME B760M-PLUS

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14^th& 13^thGen Intel^®Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Specifications
Manufacturer: ASUS Computer International
Manufacturer Part Number: 90MB1GY0-M0EAY0
Manufacturer Website Address: http://uk.asus.com
Brand Name: TUF
Product Line: Prime
Product Model: B760M-PLUS
Product Name: PRIME B760M-PLUS Gaming Desktop Motherboard
Product Type: Gaming Desktop Motherboard
Technical Information
AI-powered: Yes
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: B760
Processor Socket: Socket LGA-1700
Processor Generation Supported:

• 14th Gen
• 13th Gen
• 12th Gen

Processor Supported:

• Pentium Gold
• Celeron
• Core

Memory
Number of Memory Slots: 4
Memory Form Factor:

• DIMM
• UDIMM

Maximum Memory Supported: 192 GB
Memory Technology: DDR5 SDRAM
Memory Speed Supported:

• 7200 MHz
• 7000 MHz
• 6800 MHz
• 6600 MHz
• 6400 MHz
• 6200 MHz
• 6000 MHz
• 5800 MHz
• 5600 MHz
• 5400 MHz
• 5200 MHz
• 5000 MHz
• 4800 MHz

Error Checking: ECC
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 1
• 5
• 10

Video
Onboard Video: CPU Dependent Video
Audio
Audio Channels: 7.1
Network & Communication
Gigabit Ethernet: Yes
2.5Gigabit Ethernet: Yes
I/O Expansions
Total Number of Expansion Slots: 3
PCI Express Standard: PCI Express 4.0
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 2
Interfaces/Ports
Total Number of USB Ports: 6
HDMI: Yes
HDMI Version: 2.1
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Onboard Interfaces
Number of SATA Interfaces: 4
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 8
Number of Onboard USB 2.0 Ports: 5
Onboard S/PDIF Header: Yes
Physical Characteristics
Form Factor: Micro ATX
Width: 243.8 mm
Depth: 243.8 mm
Weight (Approximate): 1.56 kg
Miscellaneous
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
