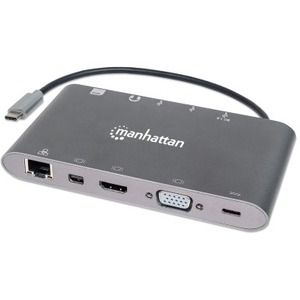

Manhattan SuperSpeed USB-C to 7-in-1 Docking Station

Marketing Information

Easily connect a USB Type-C device to an HDMI, Mini DP or VGA display, USB peripherals, Network and SD memory card

The Manhattan SuperSpeed USB-C Docking Station establishes a fast, simple and convenient link between newer USB Type-C-equipped media sources (computers, tablets, Smartphones, etc.) and an existing HDMI/Mini DP/VGA display (monitors, projectors, etc.), in either mirror- or extended-display mode. Create a mini-workstation by adding any USB 3.0 (and earlier) peripheral, such as a mouse, keyboard, hub, external memory device and more, with the integrated USB-A ports, Gigabit network connection, 3.5 mm Stereo and SD and Micro SD card slot, all while charging your device through the USB-C port.

The Manhattan U...SB 3.2 Gen 1 USB-C Docking Station is easy and quick to install. No complicated configuration or setup is required to enhance the functionality of your Type-C device. Its all-in-one design achieves a compact, integrated solution that eliminates unnecessary cables, tangles and clutter to keep installations and work spaces neat and orderly.

Specifications
Manufacturer: IC INTRACOM
Manufacturer Part Number: 152808
Manufacturer Website Address: http://www.icintracom.com
Brand Name: Manhattan
Product Model: 152808
Product Name: SuperSpeed USB-C to 7-in-1 Docking Station
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported:

• Desktop PC
• Tablet PC
• Notebook
• Smartphone

Screen Mode Supported: 4K
Supported Resolutions:

• 3840 x 2160
• 1920 x 1200
• 1024 x 768
• 800 x 600
• 640 x 480

Interfaces/Ports
Host Interface: USB Type C
Audio Line Out: Yes
Total Number of USB Ports: 5
Number of USB 3.0 Ports: 3
Number of USB Type-A Ports: 3
USB Type-A: Yes
USB Type-C: Yes
USB Type-C Detail: 24-pin, male
Network (RJ-45): Yes
VGA: Yes
Number of Mini DisplayPort: 1
Mini DisplayPort: Yes
Number of HDMI Outputs: 1
HDMI: Yes
Software
Operating System Supported:

• Windows
• macOS
• Linux

Power Description
Maximum Power Supply Wattage: 60 W
Physical Characteristics
Height: 170 mm
Width: 1370 mm
Depth: 750 mm
Weight (Approximate): 198 g
Miscellaneous
Package Contents:

• SuperSpeed USB-C to 7-in-1 Docking Station
• Quick Instruction Guide

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS) 2
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 3 Year
