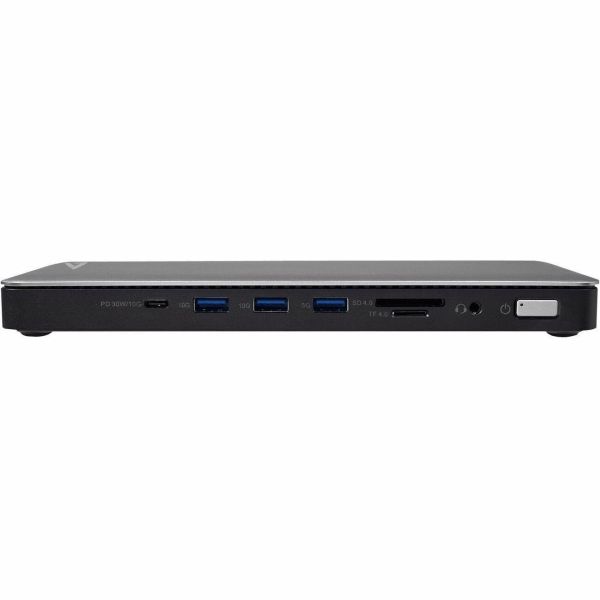

V7 DOCKTB4PTThunderbolt™ 4 Triple Alt Mode Display Docking Station

Marketing Information
This DOCKTB4PT Thunderbolt 4 Triple Alt Mode Display Docking Station from V7 adds up to 3 displays, 3 USB ports, 2 Thunderbolt 4 ports, a USB-C port with up to 96 Watts Power Delivery, Audio, SD/Micro SD Memory Cards and up to 2.5 Gigabit Ethernet network connectivity to your Thunderbolt 4 enabled computer while charging at the same time with up to 96W power delivery. It features two HDMI ports and two DisplayPort outputs that can be used to extend or mirror your device for multitasking productivity. It supports single 8K 30Hz display (HDMI or DP) or up to three 4K (4K/60Hz + 4K/60Hz + 4K/30Hz) displays. It is Thunderbolt 4 certified and compatible with DisplayPort Alt mode and USB4 enabled computers and mobile devices. It includes both K-Loc...k and N-Lock interface for security. This solution provides high performance connectivity to extend and enhance your workstation productivity with a 2 year warranty. 150 Watt Power Supply included.
Specifications
Manufacturer: V7
Manufacturer Part Number: DOCKTB4PT
Manufacturer Website Address: http://www.v7world.com
Brand Name: V7
Product Model: DOCKTB4PT
Product Name: DOCKTB4PTThunderbolt™ 4 Triple Alt Mode Display Docking Station
Packaged Quantity: 1.0
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Charging Capability: Yes
Memory Card Reader: Yes
Memory Card Supported:

• SD
• microSD

Features: Security Lock
Number of Displays Supported: 3.0
Screen Mode Supported:

• 8K
• 4K
• 2K
• Full HD

Supported Resolutions:

• 7680 x 4320
• 3840 x 2160
• 2560 x 1440
• 1920 x 1080

Maximum Data Transfer Rate: 320 MB/s
Security Slot Type:

• Noble Wedge Security Slot
• Kensington Security Slot

Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: Thunderbolt 4
Total Number of USB Ports: 6
Number of USB 3.2 Gen 1 Type-A Ports: 1
Number of USB 3.2 Gen 2 Type-A Ports: 2
USB Type-A: Yes
USB Type-C: Yes
USB Type-C Detail: 1 x USB-C 3.2 Gen2
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
Headphone/Microphone Combo Port: Yes
Number of HDMI Outputs: 2
Number of HDMI Ports: 2
HDMI: Yes
HDMI Version: 2.0
Thunderbolt: Yes
Thunderbolt Ports Quantity: 2
Number of Thunderbolt 4 Ports: 3
USB Power Delivery: 96W
Software
Operating System Supported:

• Windows
• Linux
• macOS
• Android
• ChromeOS

Power Description
Maximum Power Supply Wattage: 150 W
Physical Characteristics
Color Family: Dual Colour
Product Color:

• Black
• Silver

Height: 22 mm
Width: 85 mm
Length: 225 mm
Weight (Approximate): 499 g
Miscellaneous
Kensington Security Slot: Yes
Additional Information:

Audio Channel: 384KHz sampling rate

Compliance: CE,FCC

Docking Type: Alt Mode

Material: ABS

Operating Temperature: 0℃ to +45℃

Output Voltage: 20V/7.5A DC

Package Dimensions (L/W/H): 10.63 x 6.3 x 2.36 in

Shipping Weight: 2.31 lbs

Storage Temperature: 0℃ to +70℃

USB Display Type: Alt-Mode

Brand Compatibility:

• Acer
• Apple
• Asus
• Dell
• HP
• Lenovo
• Microsoft
• Samsung
• Sony

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: Vietnam
Warranty
Limited Warranty: 2 Year
