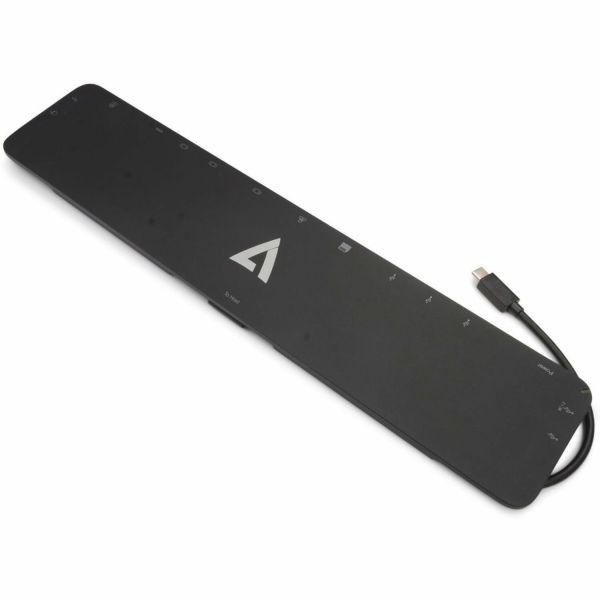

V7 DOCKUCPT01 Docking Station

Marketing Information
The DOCKUCPT01 USB-C Pass Through Alt-Mode Docking Station from V7 allows you to add up to 3 displays, Audio, Gigabit Ethernet, SD/Micro SD/MMC memory cards, and extra USB ports to almost any USB-C enabled device. It features HDMI, DisplayPort and VGA display outputs that can be used to expand or mirror your device for multitasking productivity. It has a USB-C PD charging port to connect a USB-C Power supply (sold separately) which can supply up to 100 Watts of USB-C Charging to your computer at the same time as providing all the extra connectivity. It is compatible with DisplayPort Alt mode, USB-C and Thunderbolt™ 3 host computers, mobile devices, or other devices.

...nclick="javascript:window.open('//content.etilize.com/mini-site/en_uk/1066708412.html','_blank','height=800,width=780,resizable=yes,scrollbars=yes,toolbar=no,menubar=no,location=no,directories=no,status=no');return false;">More from the Manufacturer

Specifications
Manufacturer: V7
Manufacturer Part Number: DOCKUCPT01
Manufacturer Website Address: http://www.v7world.com
Brand Name: V7
Product Model: DOCKUCPT01
Product Name: DOCKUCPT01 Docking Station
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Charging Capability: Yes
Device Supported:

• Notebook
• Desktop PC
• Monitor

Memory Card Reader: Yes
Memory Card Supported:

• SD
• microSD
• MultiMediaCard (MMC)

Features: Security Lock
Number of Displays Supported: 3
Screen Mode Supported:

• 4K
• Full HD

Supported Resolutions:

• 3840 x 2160
• 1920 x 1200

Maximum Data Transfer Rate: 128 MB/s
Security Slot Type: Kensington Security Slot
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: USB Type C
Total Number of USB Ports: 5
Number of USB 2.0 Ports: 2
Number of USB 3.0 Ports: 3
Number of USB Type-C Ports: 2
USB Type-C: Yes
USB Type-C Detail: USB-C PD 100W IN
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
VGA: Yes
Number of DisplayPorts: 1
DisplayPort: Yes
Headphone/Microphone Combo Port: Yes
Number of HDMI Ports: 1
HDMI: Yes
USB Power Delivery: 100W
Software
Operating System Supported:

• Windows
• Linux
• macOS
• Android
• ChromeOS

Physical Characteristics
Color Family: Black
Product Color: Black
Form Factor: Desktop
Height: 18 mm
Width: 74 mm
Length: 349.5 mm
Weight (Approximate): 249.5 g
Miscellaneous
Kensington Security Slot: Yes
Additional Information:

Compliance: CE,FCC,UKCA

Docking Type: Alt Mode

Material: ABS

Maximum Output Power: 20V 5A

Operating Temperature: 0 to 45 C

Output Voltage: DC 20V 5A

Package Dimensions (L/W/H): 15.35 x 4.53 x 1.38 in (390 x 115 x 35 mm)

Shipping Weight: 0.44 lbs (0.19784 kg)

Storage Temperature: -10 to 70 C

USB Display Type: Alt-Mode

Input Voltage Detail: USB-C PD Charging 20V 5A DC
Compatibility: DisplayPort Alt mode, USB-C and Thunderbolt™ 3 host computers, mobile devices, or other devices.
Brand Compatibility:

• Acer
• Apple
• Asus
• Dell
• HP
• Lenovo
• Microsoft
• Samsung
• Sony
